Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG

Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DGSi595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG

产品简介

Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG，尺寸7.0×5.0mm，频率32MHZ，电压3.3V，输出逻辑LVPECL，LVPECL差分振荡器，压控差分晶振，VCXO压控晶振，石英差分晶振，贴片差分振荡器，LV-PECL差分输出晶振，7050mm差分晶振，低电压差分振荡器，低功耗差分晶振，低抖动差分晶振，低耗能差分晶振，低耗能差分晶振，低相位差分振荡器，低相噪差分晶振，仪器设备差分晶振，6G光模块差分晶振，6G基站差分晶振，无线网络差分振荡器，网络专用差分晶振，6G路由器专用差分晶振，小型设备专用差分晶振，产品具有低抖动低功耗的特点.

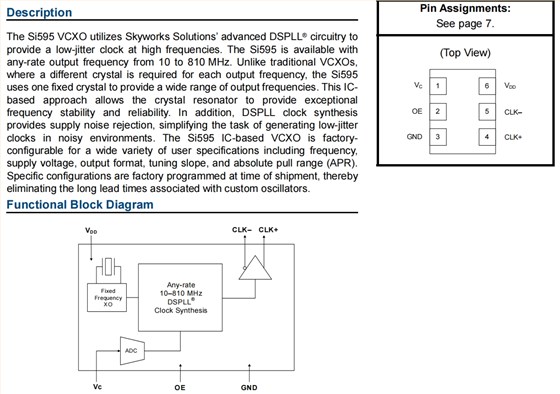

Si595 VCXO晶振利用Skyworks Solutions的先进DSPLL®电路在高频下提供低抖动时钟。Si595具有从10到810MHz的任何速率输出频率。与传统的VCXO不同，其中每个输出频率需要不同的晶体，Si595使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的性能频率稳定性和可靠性。Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG.


产品详情

1

Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG，尺寸7.0×5.0mm，频率32MHZ，电压3.3V，输出逻辑LVPECL，LVPECL差分振荡器，压控差分晶振，VCXO压控晶振，石英差分晶振，贴片差分振荡器，LV-PECL差分输出晶振，7050mm差分晶振，低电压差分振荡器，低功耗差分晶振，低抖动差分晶振，低耗能差分晶振，低耗能差分晶振，低相位差分振荡器，低相噪差分晶振，仪器设备差分晶振，6G光模块差分晶振，6G基站差分晶振，无线网络差分振荡器，网络专用差分晶振，6G路由器专用差分晶振，小型设备专用差分晶振，产品具有低抖动低功耗的特点.

Si595 VCXO晶振利用Skyworks Solutions的先进DSPLL®电路在高频下提供低抖动时钟。Si595具有从10到810MHz的任何速率输出频率。与传统的VCXO不同，其中每个输出频率需要不同的晶体，Si595使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的性能频率稳定性和可靠性。Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG.2

Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
110
100
90 		135
120
110
100 		mA
Tristate mode 60 75
Output Enable (OE)2 VIH 0.75 x VDD V
VIL 0.5
Operating Temperature Range TA –40 85 °C
Parameter Symbol Test Condition Min Typ Max Units
Control Voltage Tuning Slope1,2,3 KV 10 to 90% of VDD 45
95
125
185
380 		ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 kΩ
VCInput Capacitance CVC 50 pF
Nominal Control Voltage VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
3Si595低相噪晶振\Skyworks振荡器\6G基站晶振\595AF32M0000DG尺寸图Si595 7.050

压控晶振产品特性：

可用于任何速率输出频率从10到810兆赫

第三代DSPLL®卓越的抖动性能

内部固定基本模式晶体频率确保高可靠性和低老化

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7和3.2x5 mm包装

无铅/符合RoHS

–40至+85ºC工作范围

Si595 1Si595 2
