CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振

当前位置：首页 » 日产晶振 » CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振

prevnext

CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振

频率：25M

尺寸：2016mm

CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振,2016mm紧凑四脚SMD封装,专为小型化设备开发,有效节省PCB布局空间.适配车载多媒体,工业网关,无线通信板卡.康华尔电子为KYOCERA晶振品牌代理,常备现货资源,欢迎来电咨询0755?27838351.

订购热线：0755-27838351

CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振

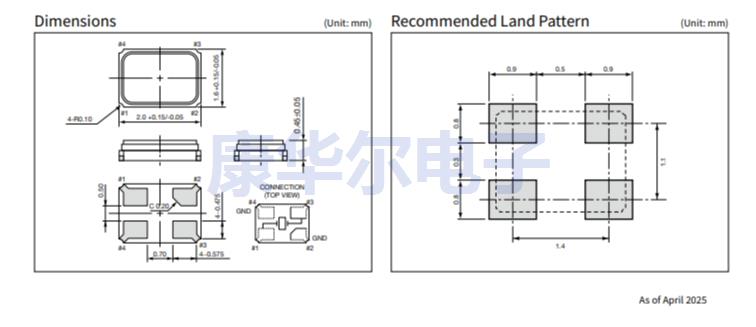

KYOCERA京瓷晶振CX2016SA25000B0FZJG2属于CX2016SA系列2016贴片无源晶振,25MHz晶振基频,2.0×1.6mm封装尺寸,厚度仅0.5mm,具备±10ppm频率精度,低ESR等效串联电阻,起振性能稳定可靠.广泛用于车载影音,无线模组,工业控制,消费智能硬件.康华尔电子是KYOCERA日产进口晶振品牌代理,可提供样品测试与批量供货,欢迎来电咨询0755?27838351.

CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振

品牌	京瓷晶振
编码	CX2016SA25000B0FZJG2
类型	CX2016SA
频率	25MHz
负载	6pf
精度	10ppm
尺寸	2016
工作温度	-40~+125℃

CX2016SA25000B0FZJG2,KYOCERA京瓷晶振,25MHz晶振

更多晶振型号

编码	欧美进口晶振	型号	工作温度	频率	频率公差
FC5BQCBJF12.0-1-T1	FOX	FC5BQ	-20℃~70℃	12MHz	±30ppm
FC5BQCBKM12.0-T1	FOX	FC5BQ	-40℃~85℃	12MHz	±30ppm
FC5BQCCMC12.0-T1	FOX	FC5BQ	0℃~70℃	12MHz	±30ppm
FC5BQCCMC16.0-T1	FOX	FC5BQ	0℃~70℃	16MHz	±30ppm
FC5BQCCMC20.0-T1	FOX	FC5BQ	0℃~70℃	20MHz	±30ppm
FC5BQCCMC24.0-T1	FOX	FC5BQ	0℃~70℃	24MHz	±30ppm
FC5BQCCMC24.576-T1	FOX	FC5BQ	0℃~70℃	24.576MHz	±30ppm
FC5BQCCMC25.0-T1	FOX	FC5BQ	0℃~70℃	25MHz	±30ppm
FC5BQCCMM10.0-T1	FOX	FC5BQ	-40℃~85℃	10MHz	±30ppm
FC5BQCCMM12.0-T1	FOX	FC5BQ	-40℃~85℃	12MHz	±30ppm
FC5BQCCMM16.0-T1	FOX	FC5BQ	-40℃~85℃	16MHz	±30ppm
FC5BQCCMM20.0-T1	FOX	FC5BQ	-40℃~85℃	20MHz	±30ppm
FC5BQCCMM24.0-T1	FOX	FC5BQ	-40℃~85℃	24MHz	±30ppm
FC5BQCCMM25.0-T1	FOX	FC5BQ	-40℃~85℃	25MHz	±30ppm
FC5BQCCMM8.0-T1	FOX	FC5BQ	-40℃~85℃	8MHz	±30ppm
FC7ASBAMM9.216-T1	FOX	FC7AS	-40℃~85℃	9.216MHz	±50ppm
FC7ASBBGD24.0-T1	FOX	FC7AS	-10℃~60℃	24MHz	±50ppm
FC7ASBBMD10.0-T1	FOX	FC7AS	-10℃~60℃	10MHz	±50ppm
FC7ASBBMD10.0-T2	FOX	FC7AS	-10℃~60℃	10MHz	±50ppm
FC7ASBBMD20.0-T1	FOX	FC7AS	-10℃~60℃	20MHz	±50ppm
FC7ASBBMD20.0-T2	FOX	FC7AS	-10℃~60℃	20MHz	±50ppm
FC7ASBBMD24.576-T2	FOX	FC7AS	-10℃~60℃	24.576MHz	±50ppm
FC7ASBBMD25.0-T2	FOX	FC7AS	-10℃~60℃	25MHz	±50ppm
FC7ASBBMD9.8304-T2	FOX	FC7AS	-10℃~60℃	9.8304MHz	±50ppm
FC7ASBBMM16.0-T1	FOX	FC7AS	-40℃~85℃	16MHz	±50ppm
FC7ASBBMM9.216-T1	FOX	FC7AS	-40℃~85℃	9.216MHz	±50ppm
FC7ASCCGM7.6-T1	FOX	FC7AS	-40℃~85℃	7.6MHz	±30ppm
FC7BSBBGM25.0-T1	FOX	FC7BS	-40℃~85℃	25MHz	±50ppm
FC7BSCCEF8.0-T1	FOX	FC7BS	-20℃~70℃	8MHz	±30ppm
FC7BSCCEM6.0-T1	FOX	FC7BS	-40℃~85℃	6MHz	±30ppm
FC7BSCCMC10.0-T1	FOX	FC7BS	0℃~70℃	10MHz	±30ppm
FC7BSCCMC11.0592-T1	FOX	FC7BS	0℃~70℃	11.0592MHz	±30ppm
FC7BSCCMC6.0-T1	FOX	FC7BS	0℃~70℃	6MHz	±30ppm
FC7BSCCMC7.3728-T1	FOX	FC7BS	0℃~70℃	7.3728MHz	±30ppm
FC7BSCCMC8.0-T1	FOX	FC7BS	0℃~70℃	8MHz	±30ppm
FC7BSCCMD8.0-T1	FOX	FC7BS	-10℃~60℃	8MHz	±30ppm
FC7BSCCMF8.0-T1	FOX	FC7BS	-20℃~70℃	8MHz	±30ppm
FC7BSCCMM6.0-T1	FOX	FC7BS	-40℃~85℃	6MHz	±30ppm
FC7BSCCMM7.3728-T1	FOX	FC7BS	-40℃~85℃	7.3728MHz	±30ppm
FC7BSCCMM8.0-T1	FOX	FC7BS	-40℃~85℃	8MHz	±30ppm
FC8AQCCMC3.6864-T1	FOX	FC8AQ	0℃~70℃	3.6864MHz	±30ppm
FC8AQCCMC4.0-T1	FOX	FC8AQ	0℃~70℃	4MHz	±30ppm
FC8AQCCMC4.9152-T1	FOX	FC8AQ	0℃~70℃	4.9152MHz	±30ppm
FC8AQCCMC6.0-T1	FOX	FC8AQ	0℃~70℃	6MHz	±30ppm
FC8AQCCMM3.6864-T1	FOX	FC8AQ	-40℃~85℃	3.6864MHz	±30ppm
FC8AQCCMM4.0-T1	FOX	FC8AQ	-40℃~85℃	4MHz	±30ppm
FC8AQCCMM6.0-T1	FOX	FC8AQ	-40℃~85℃	6MHz	±30ppm
FC9SDCBEF8.0-T1	FOX	FC9SD	-20℃~70℃	8MHz	±30ppm
FC9SDCBMF8.0-T1	FOX	FC9SD	-20℃~70℃	8MHz	±30ppm
FC9SDCBMM8.0-T1	FOX	FC9SD	-40℃~85℃	8MHz	±30ppm
FK13LEIBM0.032768-T3	FOX	FK13L	-40℃~85℃	32.768kHz	±20ppm
FK145EIHM0.032768-T3	FOX	FK145	-40℃~85℃	32.768kHz	±20ppm
FK161EIHM0.032768-T5	FOX	FK161	-40℃~85℃	32.768kHz	±20ppm
FKFSREIBM0.032768-T3	FOX	FKFSR	-40℃~85℃	32.768kHz	±20ppm
FKFSREIHM0.032768-T3	FOX	FKFSR	-40℃~85℃	32.768kHz	±20ppm
FKFSXEIHM0.032768-T3	FOX	FKFSX	-40℃~85℃	32.768kHz	±20ppm
FKT15EIHD0.032768	FOX	FKT15	-10℃~60℃	32.768kHz	±20ppm
FKT26EIBM0.032768	FOX	FKT26	-40℃~85℃	32.768kHz	±20ppm
