格耶无源谐振器/12.85559/6G通信晶振/KX-5水晶振动子

频率：40MHZ

尺寸：2.00mmx1.60mm

格耶无源谐振器/12.85559/6G通信晶振/KX-5水晶振动子，尺寸2.00mmx1.60mm，频率40MHZ，丹麦格耶晶振，无源贴片晶振，石英贴片晶振，SMD晶体，石英晶体谐振器，2016mm石英晶体，绿色环保晶振，无源石英晶体，四脚贴片晶振，低损耗石英晶振，高性能晶振，高品质晶振，6G通信应用晶振，可穿戴设备专用晶振，通信专用贴片晶振，仪器仪表专用晶振，娱乐设备晶振，无线网络专用晶振，产品具有高品质高性能的特点.石英晶振产品可满足不同应用程序的需求，尤其适合用于可穿戴设备，6G通信，无线网络，娱乐设备，仪器仪表，智能产品等领域.格耶无源谐振器/12.85559/6G通信晶振/KX-5水晶振动子.

订购热线：0755-27838351

格耶无源谐振器/12.85559/6G通信晶振/KX-5水晶振动子 参数表

part no.	12.xxxxx
model	KX - 5
frequency range	40.0 MHz
mode	fundamental
operating temperature	standard -20° ~ +70°C available -40° ~ +85°C (=KX-5T); -40° ~ +105°C (=KX-5E); -40° ~ +125°C (=KX-5F)
frequency tolerance at +25°C	standard ±30 ppm; available ±10 ~ ±50 ppm
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C	Standard ±50 ppm; available ±10 ~ ±100 ppm standard ±100 ppm; available ±30 ~ ±120 ppm standard ±100 ppm; available ±50 ~ ±150 ppm
load capacitance CL	standard 8 pF; available 8 ~ 16 pF
series resistance R1 (ESR) max.	16.0 ~ 20.99 MHz 200 Ohm 21.0 ~ 24.99 MHz 100 Ohm 25.0 ~ 40.99 MHz 80 Ohm 41.0 ~ 80.0 MHz 60 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance C0 max.	3.0 pF
drive level max.	100 µW
contents of reel	1000 pcs.

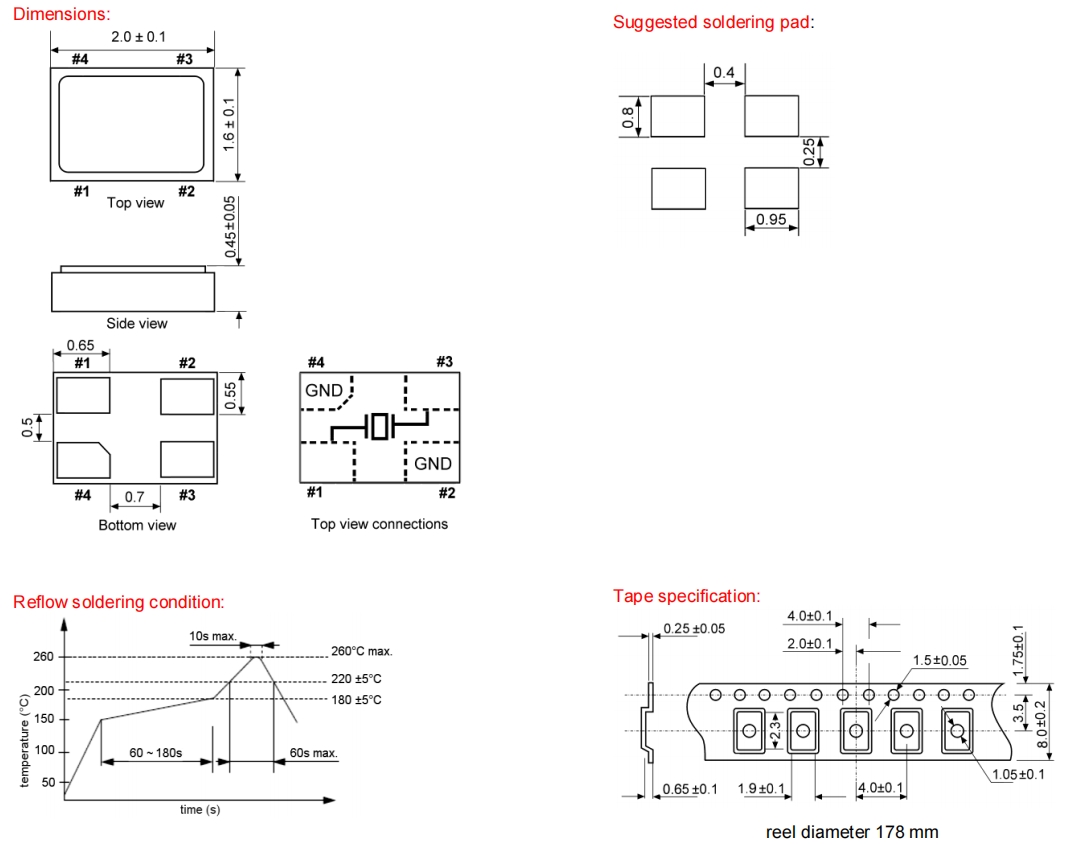

格耶无源谐振器/12.85559/6G通信晶振/KX-5水晶振动子 尺寸图

谐振器产品特性：

成本很低

小尺寸晶体

高品质低损耗

更多相关Geyer格耶晶振型号

Mfr Part #	Mfr	Description	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm	±30ppm	8pF
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	16pF
12.89082	Geyer晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	16pF
12.60075	Geyer晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	8pF
12.89155	Geyer晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	16pF
12.88522	Geyer晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	12pF
12.88752	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	12pF
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm	±10ppm	8pF
12.88565	Geyer晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	12pF
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm	±30ppm	8pF
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm	±30ppm	10pF
12.89209	Geyer晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	20pF
12.8652	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm	±30ppm	10pF
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm	±30ppm	8pF
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm	±30ppm	8pF
12.84818	Geyer晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm	±30ppm	8pF
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm	±10ppm	10pF
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm	±30ppm	8pF
12.86505	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm	±30ppm	10pF
12.60024	Geyer晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	12pF
12.84803	丹麦格耶晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm	±10ppm	8pF
12.85518	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5E	20 MHz	±50ppm	±30ppm	8pF
12.8873	Geyer晶振	Crystal 26.0Mhz 12pF SMD	KX-7T	26 MHz	±50ppm	±30ppm	12pF
12.86556	Geyer晶振	Crystal 40.0Mhz 8pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	8pF
12.88643	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7T	14.31818 MHz	±50ppm	±30ppm	12pF
12.86511	Geyer晶振	Crystal 18.4320Mhz 10pF SMD	KX-6	18.432 MHz	±50ppm	±30ppm	10pF
12.88523	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7F	40 MHz	±50ppm	±30ppm	12pF
12.89288	Geyer晶振	Crystal 24.5760Mhz SMD KX-9AT 20	KX-9AT	24.576 MHz	±30ppm	±20ppm	20pF
12.86536	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6	14.31818 MHz	±50ppm	±30ppm	10pF
12.89029	Geyer晶振	Crystal 27.0Mhz SMD KX-9A 16pF,	KX-9A	27 MHz	±50ppm	±30ppm	16pF
12.88799	Geyer晶振	Crystal 12.0Mhz 10pF SMD	KX-7	12 MHz	±30ppm	±30ppm	10pF
12.8481	Geyer晶振	Crystal 48.0MHz 8pF SMD	KX-4	48 MHz	±50ppm	±30ppm	8pF
12.84814	Geyer晶振	Crystal 32.0MHz 8pF SMD	KX-4	32 MHz	±15ppm	±10ppm	8pF
12.88756	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7E	26 MHz	±50ppm	±10ppm	12pF
12.8556	Geyer晶振	CYSTAL 16.0MHZ 8PF SMD	KX-5T	16 MHz	±30ppm	±30ppm	8pF
12.86561	Geyer晶振	Crystal 40.0Mhz 10pF SMD	KX-6T	40 MHz	±20ppm	±10ppm	10pF
12.8877	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7T	30 MHz	±10ppm	±10ppm	12pF
12.86564	Geyer晶振	Crystal 14.318180Mhz 10pF SMD	KX-6T	14.31818 MHz	±100ppm	±30ppm	10pF
12.86592	Geyer晶振	Crystal 25.0Mhz SMD KX-6T 12pF,	KX-6T	25 MHz	±20ppm	±10ppm	12pF
12.87159	Geyer晶振	CRYSTAL 32.7680kHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF
12.87163	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327RT	32.768 kHz	-0.036ppm	±20ppm	7pF
12.87151	Geyer晶振	CRYSTAL 32.7680kHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±30ppm	9pF
12.8717	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327FT	32.768 kHz	-	±20ppm	12.5pF
12.87148	Geyer晶振	CRYSTAL 32.7680KHZ 7PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	7pF
12.87106	Geyer晶振	CRYSTAL 32.768KHZ 7PF SMD	KX-327XST	32.768 kHz	±20ppm	±20ppm	7pF
12.8716	Geyer晶振	CYSTAL 32.7680KHZ 12.5PF SMD	KX-327RT	32.768 kHz	±20ppm	±20ppm	12.5pF
12.87143	Geyer晶振	CRYSTAL 32.768KHz 9pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	9pF
12.84801	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±50ppm	±30ppm	8pF
12.8718	Geyer晶振	Crystal 32.7680kHz 9pF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	9pF
12.87147	Geyer晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327NHT	32.768 kHz	-	±10ppm	7pF
12.87081	Geyer晶振	CRYSTAL 32.768KHZ 6PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	6pF
12.87149	Geyer晶振	CRYSTAL 32.7680KHZ 9PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	9pF
12.87156	Geyer晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF
12.87154	Geyer晶振	CRYSTAL 32.768KHz 12.5pF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF
12.87174	Geyer晶振	CRYSTAL 32.768KHz 7pF SMD	KX-327FT	32.768 kHz	-0.036ppm	±20ppm	7pF
12.87114	Geyer晶振	Cystal 32.7680Khz 12.5pF SMD	KX-327ST	32.768 kHz	-0.034ppm, ±0.006ppm	±20ppm	12.5pF
12.8715	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHT	32.768 kHz	-0.035ppm	±20ppm	12.5pF
12.87181	Geyer晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	KX-327NHF	32.768 kHz	-0.03ppm	±20ppm	12.5pF
12.60023	Geyer晶振	Cystal 48.0Mhz 12pF SMD	KX-7E	48 MHz	±50ppm	±30ppm	12pF
12.85559	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5	40 MHz	±50ppm	±30ppm	8pF
