QuartzCom石英晶体,SMX-1S谐振器,7050mm四脚无源晶振

频率：8~250MHZ

尺寸：7.0×5.0mm

QuartzCom石英晶体,SMX-1S谐振器,7050mm四脚无源晶振，尺寸7.0×5.0mm，频率8~250MHZ，瑞士进口晶振，石英通无源晶振，7050mm无源晶振，高频晶振，四脚贴片晶振，水晶振动子，贴片石英晶振，无铅环保晶振，石英晶体谐振器，无源石英晶体，石英SMD晶振，SMD晶振，无源晶振，电信应用晶振，数字音频晶振，移动通信晶振，定位导航专用晶振，仪器设备晶振，测试测量晶振，娱乐设备晶振，高性能晶振，高质量晶振，低损耗晶振，低功耗晶振，低耗能晶振，具有高性能高质量的特点。SMD晶体产品超级适合用于电信应用，数字音频，移动通信，定位导航，仪器设备，测试测量，娱乐设备等应用。QuartzCom石英晶体,SMX-1S谐振器,7050mm四脚无源晶振.

订购热线：0755-27838351

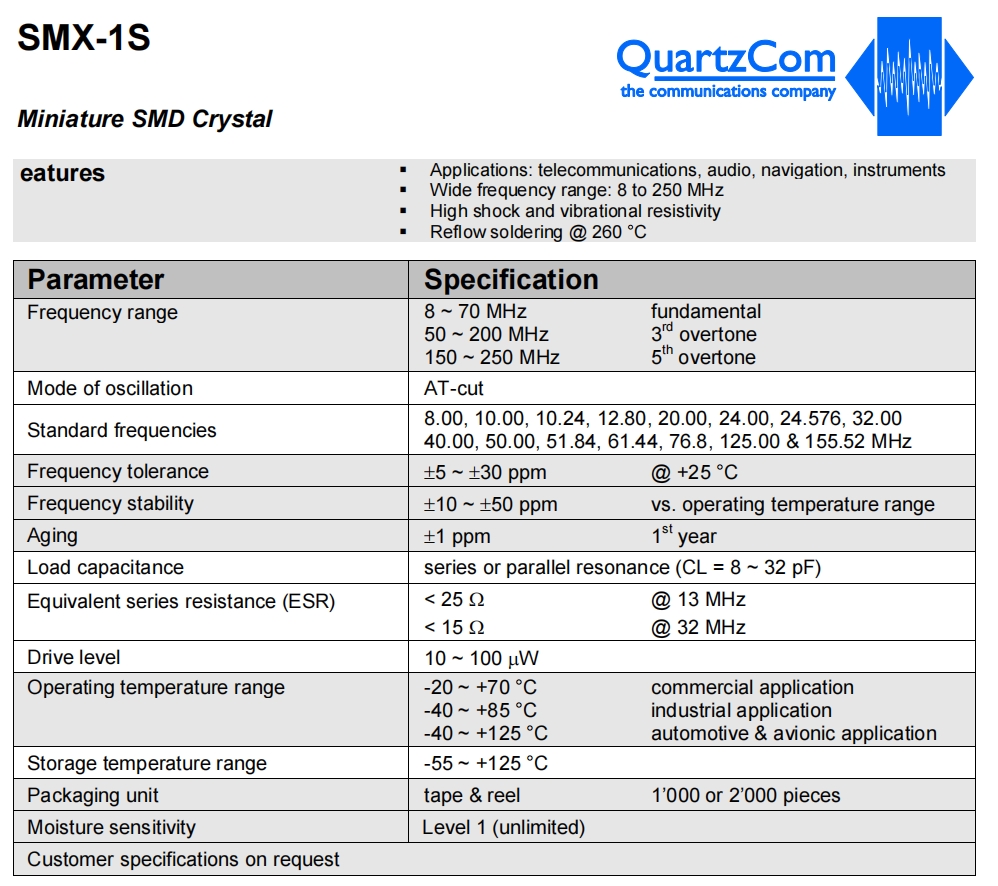

QuartzCom石英晶体,SMX-1S谐振器,7050mm四脚无源晶振 参数表

Parameter	Specification
Frequency range	8 ~ 70 MHz 50 ~ 200 MHz 150 ~ 250 MHz	fundamental 3rd overtone 5th overtone
Mode of oscillation	AT-cut
Standard frequencies	8.00, 10.00, 10.24, 12.80, 20.00, 24.00, 24.576, 32.00 40.00, 50.00, 51.84, 61.44, 76.8, 125.00 & 155.52 MHz
Frequency tolerance	土5 ~ 土30 ppm @ +25 °C
Frequency stability	土10 ~ 土50 ppm vs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 25 Ω < 15 Ω	@ 13 MHz @ 32 MHz
Drive level	10 ~ 100 μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel 1’000 or 2’000 pieces
Moisture sensitivity	Level 1 (unlimited)
Customer specifications on request
