QESM01,7050mm,QESM01.1.30.HQ.30.20/12.000MHz,进口瑞康晶振，尺寸7.0×5.0mm，频率12MHZ，Rakon轻薄型晶振，四脚无源晶振，瑞康晶振，无源谐振器，无铅环保晶振，石英贴片晶振，石英晶振，无源石英晶振，7050mm高品质晶振，SMD晶体，视听设备晶振，便携式设备晶振，以太网晶振，物联网晶振，娱乐设备晶振，测试测量晶振，蓝牙音响晶振，高性能晶振，高品质晶振，低损耗晶振，低功耗晶振，具有高性能高品质的特点。
石英晶体产品比较常用于视听设备，便携式设备，以太网，物联网，娱乐设备，测试测量，蓝牙音响等应用。QESM01,7050mm,QESM01.1.30.HQ.30.20/12.000MHz,进口瑞康晶振.

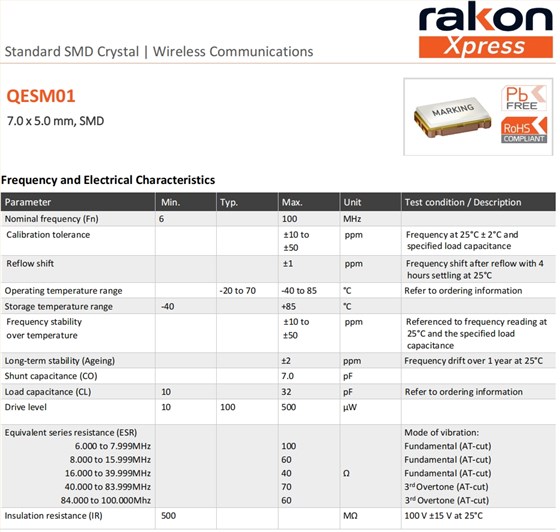

QESM01,7050mm,QESM01.1.30.HQ.30.20/12.000MHz,进口瑞康晶振参数表
12
Parameter
Nominal frequency (Fn)
Min.
Typ.
Max.
Unit
Test condition / Description
Calibration tolerance
±10 to
±50
ppm
Frequency at 25°C ± 2°C and
specified load capacitance
Reflow shift
±1
ppm
Frequency shift after reflow with 4
hours settling at 25°C
Operating temperature range
-20 to 70
-40 to 85
°C
Refer to ordering information
Storage temperature range
-40
+85
°C
Frequency stability
over temperature
±10 to
±50
ppm
Referenced to frequency reading at
25°C and the specified load
capacitance
Long-term stability (Ageing)
±2
ppm
Frequency drift over 1 year at 25°C
Shunt capacitance (CO)
7.0
pF
Load capacitance (CL)
10
32
pF
Refer to ordering information
Drive level
10
100
500
µW
Equivalent series resistance (ESR)
6.000 to 7.999MHz
8.000 to 15.999MHz
16.000 to 39.999MHz
40.000 to 83.999MHz
84.000 to 100.000Mhz
100
60
40
70
60
a
Mode of vibration:
Fundamental (AT-cut)
Fundamental (AT-cut)
Fundamental (AT-cut)
3rdOvertone (AT-cut)
3rdOvertone (AT-cut)
Insulation resistance (IR)
500
Ma
100 V ±15 V at 25°C
QESM01,7050mm,QESM01.1.30.HQ.30.20/12.000MHz,进口瑞康晶振尺寸图
QESM01,7050mm,QESM01.1.30.HQ.30.20/12.000MHz,进口瑞康晶振
晶振晶体产品特点:
尺寸7.0×5.0mm
频率范围6~100MHZ
低损耗高性能的特点
符合RoHS标准且无铅
