NX2520SA-32MHZ-STD-CSW-2,5G小型基站晶振,WiFi物联网模块晶振

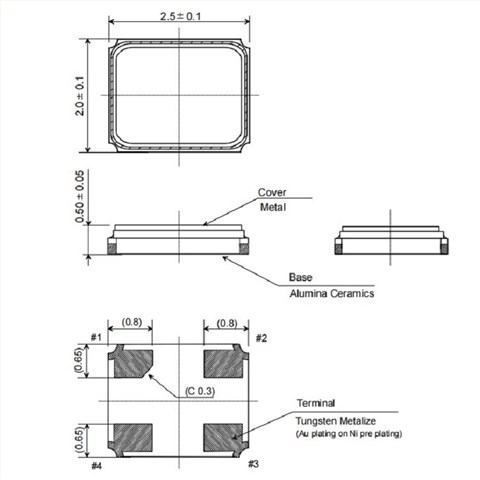

NX2520SA-32MHZ-STD-CSW-2是NDK日本电波原厂2520封装无源贴片晶振,尺寸2.5×2.0×0.5mm,32MHz标准频点,适配微型5G小型基站,WiFi6/6E物联网模组基准时钟.采用基波石英切割工艺,常温频偏±15ppm,全温区-40℃~+85℃温漂控制优异,高低温基站机房温差环境下频率稳定,减少无线信号丢包,同步偏移.低ESR等效阻抗,低驱动功耗适配锂电供电物联网终端,快速起振适配模组休眠唤醒机制.陶瓷气密密封结构抗震防潮,耐受基站设备长期持续工作,支持无铅高温回流焊,编带卷盘适配自动化SMT量产.广泛用于微基站射频单元,工业WiFi网关,6G移动通信晶振,LoRa物联网采集模块,5G室内分布小站.
| 品牌 | NDK晶振 |
| 编码 | NX2520SA-32MHZ-STD-CSW-2 |
| 类型 | 无源晶振 |
| 频率 | 32M |
| 负载 | 8PF |
| 精度 | ±10PPm |
| 尺寸 | 2520石英晶振 |
| 工作温度 | -10+70℃ |
NX2520SA-32MHZ-STD-CSW-2,5G小型基站晶振,WiFi物联网模块晶振
更多晶振型号
| 编码 | 欧美进口晶振 | 型号 | 工作温度 | 频率 | 频率公差 |
| FC5BQCBJF12.0-1-T1 | FOX | FC5BQ | -20℃~70℃ | 12MHz | ±30ppm |
| FC5BQCBKM12.0-T1 | FOX | FC5BQ | -40℃~85℃ | 12MHz | ±30ppm |
| FC5BQCCMC12.0-T1 | FOX | FC5BQ | 0℃~70℃ | 12MHz | ±30ppm |
| FC5BQCCMC16.0-T1 | FOX | FC5BQ | 0℃~70℃ | 16MHz | ±30ppm |
| FC5BQCCMC20.0-T1 | FOX | FC5BQ | 0℃~70℃ | 20MHz | ±30ppm |
| FC5BQCCMC24.0-T1 | FOX | FC5BQ | 0℃~70℃ | 24MHz | ±30ppm |
| FC5BQCCMC24.576-T1 | FOX | FC5BQ | 0℃~70℃ | 24.576MHz | ±30ppm |
| FC5BQCCMC25.0-T1 | FOX | FC5BQ | 0℃~70℃ | 25MHz | ±30ppm |
| FC5BQCCMM10.0-T1 | FOX | FC5BQ | -40℃~85℃ | 10MHz | ±30ppm |
| FC5BQCCMM12.0-T1 | FOX | FC5BQ | -40℃~85℃ | 12MHz | ±30ppm |
| FC5BQCCMM16.0-T1 | FOX | FC5BQ | -40℃~85℃ | 16MHz | ±30ppm |
| FC5BQCCMM20.0-T1 | FOX | FC5BQ | -40℃~85℃ | 20MHz | ±30ppm |
| FC5BQCCMM24.0-T1 | FOX | FC5BQ | -40℃~85℃ | 24MHz | ±30ppm |
| FC5BQCCMM25.0-T1 | FOX | FC5BQ | -40℃~85℃ | 25MHz | ±30ppm |
| FC5BQCCMM8.0-T1 | FOX | FC5BQ | -40℃~85℃ | 8MHz | ±30ppm |
| FC7ASBAMM9.216-T1 | FOX | FC7AS | -40℃~85℃ | 9.216MHz | ±50ppm |
| FC7ASBBGD24.0-T1 | FOX | FC7AS | -10℃~60℃ | 24MHz | ±50ppm |
| FC7ASBBMD10.0-T1 | FOX | FC7AS | -10℃~60℃ | 10MHz | ±50ppm |
| FC7ASBBMD10.0-T2 | FOX | FC7AS | -10℃~60℃ | 10MHz | ±50ppm |
| FC7ASBBMD20.0-T1 | FOX | FC7AS | -10℃~60℃ | 20MHz | ±50ppm |
| FC7ASBBMD20.0-T2 | FOX | FC7AS | -10℃~60℃ | 20MHz | ±50ppm |
| FC7ASBBMD24.576-T2 | FOX | FC7AS | -10℃~60℃ | 24.576MHz | ±50ppm |
| FC7ASBBMD25.0-T2 | FOX | FC7AS | -10℃~60℃ | 25MHz | ±50ppm |
| FC7ASBBMD9.8304-T2 | FOX | FC7AS | -10℃~60℃ | 9.8304MHz | ±50ppm |
| FC7ASBBMM16.0-T1 | FOX | FC7AS | -40℃~85℃ | 16MHz | ±50ppm |
| FC7ASBBMM9.216-T1 | FOX | FC7AS | -40℃~85℃ | 9.216MHz | ±50ppm |
| FC7ASCCGM7.6-T1 | FOX | FC7AS | -40℃~85℃ | 7.6MHz | ±30ppm |
| FC7BSBBGM25.0-T1 | FOX | FC7BS | -40℃~85℃ | 25MHz | ±50ppm |
| FC7BSCCEF8.0-T1 | FOX | FC7BS | -20℃~70℃ | 8MHz | ±30ppm |
| FC7BSCCEM6.0-T1 | FOX | FC7BS | -40℃~85℃ | 6MHz | ±30ppm |
| FC7BSCCMC10.0-T1 | FOX | FC7BS | 0℃~70℃ | 10MHz | ±30ppm |
| FC7BSCCMC11.0592-T1 | FOX | FC7BS | 0℃~70℃ | 11.0592MHz | ±30ppm |
| FC7BSCCMC6.0-T1 | FOX | FC7BS | 0℃~70℃ | 6MHz | ±30ppm |
| FC7BSCCMC7.3728-T1 | FOX | FC7BS | 0℃~70℃ | 7.3728MHz | ±30ppm |
| FC7BSCCMC8.0-T1 | FOX | FC7BS | 0℃~70℃ | 8MHz | ±30ppm |
| FC7BSCCMD8.0-T1 | FOX | FC7BS | -10℃~60℃ | 8MHz | ±30ppm |
| FC7BSCCMF8.0-T1 | FOX | FC7BS | -20℃~70℃ | 8MHz | ±30ppm |
| FC7BSCCMM6.0-T1 | FOX | FC7BS | -40℃~85℃ | 6MHz | ±30ppm |
| FC7BSCCMM7.3728-T1 | FOX | FC7BS | -40℃~85℃ | 7.3728MHz | ±30ppm |
| FC7BSCCMM8.0-T1 | FOX | FC7BS | -40℃~85℃ | 8MHz | ±30ppm |
| FC8AQCCMC3.6864-T1 | FOX | FC8AQ | 0℃~70℃ | 3.6864MHz | ±30ppm |
| FC8AQCCMC4.0-T1 | FOX | FC8AQ | 0℃~70℃ | 4MHz | ±30ppm |
| FC8AQCCMC4.9152-T1 | FOX | FC8AQ | 0℃~70℃ | 4.9152MHz | ±30ppm |
| FC8AQCCMC6.0-T1 | FOX | FC8AQ | 0℃~70℃ | 6MHz | ±30ppm |
| FC8AQCCMM3.6864-T1 | FOX | FC8AQ | -40℃~85℃ | 3.6864MHz | ±30ppm |
| FC8AQCCMM4.0-T1 | FOX | FC8AQ | -40℃~85℃ | 4MHz | ±30ppm |
| FC8AQCCMM6.0-T1 | FOX | FC8AQ | -40℃~85℃ | 6MHz | ±30ppm |
| FC9SDCBEF8.0-T1 | FOX | FC9SD | -20℃~70℃ | 8MHz | ±30ppm |
| FC9SDCBMF8.0-T1 | FOX | FC9SD | -20℃~70℃ | 8MHz | ±30ppm |
| FC9SDCBMM8.0-T1 | FOX | FC9SD | -40℃~85℃ | 8MHz | ±30ppm |
| FK13LEIBM0.032768-T3 | FOX | FK13L | -40℃~85℃ | 32.768kHz | ±20ppm |
| FK145EIHM0.032768-T3 | FOX | FK145 | -40℃~85℃ | 32.768kHz | ±20ppm |
| FK161EIHM0.032768-T5 | FOX | FK161 | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKFSREIBM0.032768-T3 | FOX | FKFSR | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKFSREIHM0.032768-T3 | FOX | FKFSR | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKFSXEIHM0.032768-T3 | FOX | FKFSX | -40℃~85℃ | 32.768kHz | ±20ppm |
| FKT15EIHD0.032768 | FOX | FKT15 | -10℃~60℃ | 32.768kHz | ±20ppm |
| FKT26EIBM0.032768 | FOX | FKT26 | -40℃~85℃ | 32.768kHz | ±20ppm |
KDS晶振,压控温补晶振,DSA221SCM晶振,进口晶振
KDS贴片晶振,1XXB16368MAA,温度补偿晶振,DSB221SDN,2520石英振荡器
车载晶振,DSO221SX,日本KDS晶振,24.96M,2520有源晶振,7FE02496A00

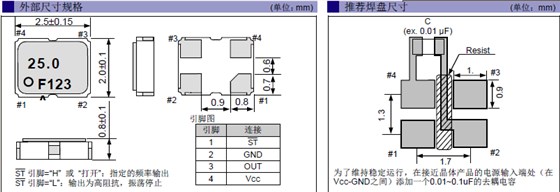

SG-210STF12.000000MHzL,智能手环晶振,EPSON晶体振荡器
