6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振

6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振，尺寸3.2*2.5mm，频率100MHZ，输出逻辑LVDS，贴片差分晶振，LVDS差分晶振，LVDS差分晶体振荡器，低电压差分晶振，低抖动差分振荡器，低相位差分晶振，OSC差分晶振，低功耗差分晶振，6G基站差分晶振，6G光网络差分晶振，6G路由器差分晶振，汽车音响差分晶振，汽车电脑差分晶振，高精度差分晶振，产品具备低抖动低相位的特点。

差分晶振LVDS产品非常适合用于6G兼容设备、基站、光网络单元、SDH/SONET设备，低端路由器、以太网、光收发器，汽车音响、汽车电脑等领域。6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振.

6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振，尺寸3.2*2.5mm，频率100MHZ，输出逻辑LVDS，贴片差分晶振，LVDS差分晶振，LVDS差分晶体振荡器，低电压差分晶振，低抖动差分振荡器，低相位差分晶振，OSC差分晶振，低功耗差分晶振，6G基站差分晶振，6G光网络差分晶振，6G路由器差分晶振，汽车音响差分晶振，汽车电脑差分晶振，高精度差分晶振，产品具备低抖动低相位的特点。

差分晶振LVDS产品非常适合用于6G兼容设备、基站、光网络单元、SDH/SONET设备，低端路由器、以太网、光收发器，汽车音响、汽车电脑等领域。6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振.

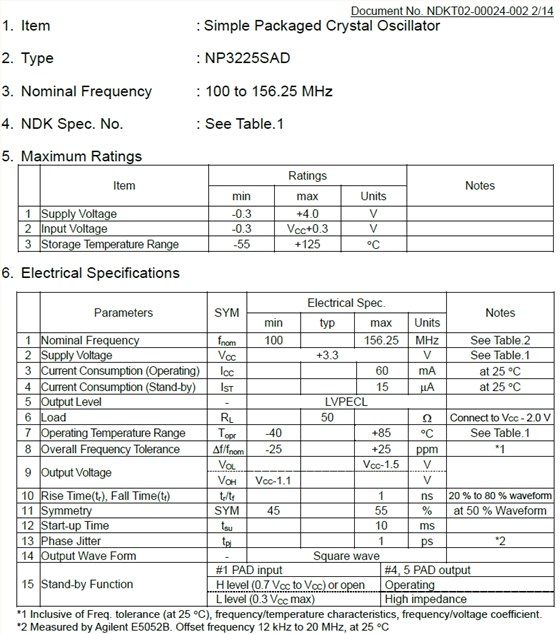

6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振参数表

Item

Ratings

Notes

min

max

Units

1

Supply Voltage

-0.3

+4.0

V

2

Input Voltage

-0.3

VCC+0.3

V

3

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

1

Nominal Frequency

fnom

100

MHz

See Table.2

2

Supply Voltage

VCC

+3.3

V

See Table.1

3

Current Consumption (Operating)

ICC

60

mA

at 25。C

4

Current Consumption (Stand-by)

IST

15

μA

at 25。C

5

Output Level

-

LVPECL

6

Load

RL

50

Ω

Connect to VCC- 2.0 V

7

Operating Temperature Range

Topr

-40

+85

。C

See Table.1

8

Overall Frequency Tolerance

Δf/fnom

-25

+25

ppm

*1

9

Output Voltage

VOL

VCC- 1.5

V

VOH

VCC- 1.1

V

10

Rise Time(tr), Fall Time(tf)

tr/tf

1

ns

20 % to 80 % waveform

11

Symmetry

SYM

45

55

%

at 50 % Waveform

12

Start-up Time

tsu

10

ms

13

Phase Jitter

tpj

1

ps

*2

14

Output Wave Form

-

Square wave

15

Stand-by Function

#1 PAD input

#4, 5 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

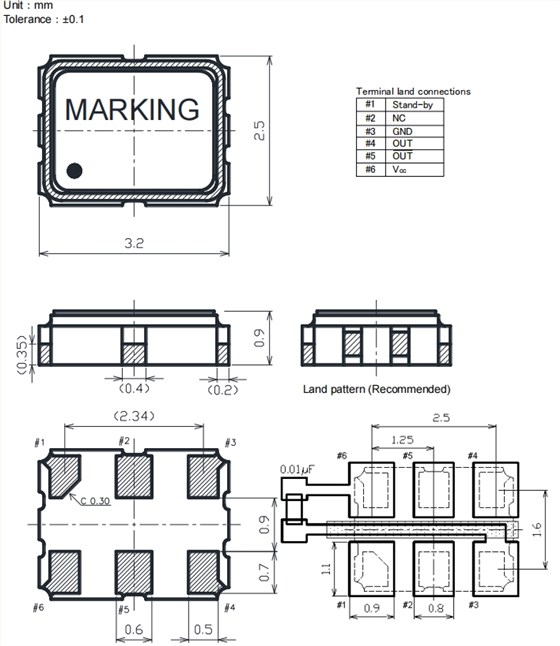

6G基站晶振,NP3225SAD-100MHZ-NSC5347B,NDK汽车差分晶振尺寸图

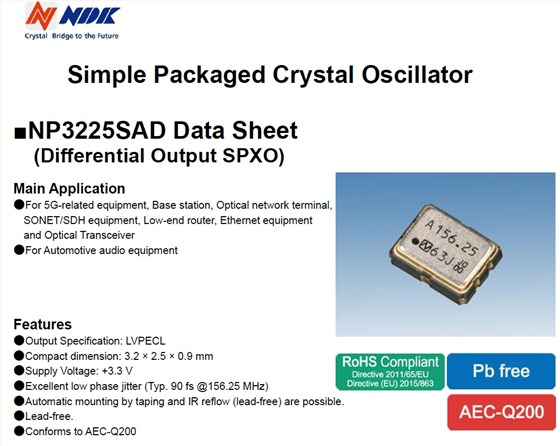

产品特性：

LVDS差分晶振SPXO

紧凑型:3.2 x 2.5 x 0.9毫米

电源电压:+3.3V

低相位抖动:典型。156.25MHz时90fs

通过缠绕自动安装和IR回流(无铅)是可能的。

无铅

符合AEC-Q200

更多相关的日本NDK晶振型号

日本进口晶振型号	Nominal frequency[MHz]	Specification number	Manufacturer	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]	Storage temperature range[℃]	Supply voltage[V]
NP3225SAB	156.25MHZ	NSC5186A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SAB	100MHZ	NSC5186B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SAB	125MHZ	NSC5186B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SAB	156.25MHZ	NSC5186B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SBB	100MHZ	NSC5187A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SBB	125MHZ	NSC5187A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SBB	156.25MHZ	NSC5187A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SBB	100MHZ	NSC5187B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SBB	125MHZ	NSC5187B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SBB	156.25MHZ	NSC5187B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SAD	100MHZ	NSC5347B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SAD	156.25MHZ	NSC5347B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SBD	100MHZ	NSC5348B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SBD	156.25MHZ	NSC5348B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SCD	100MHZ	NSC5349B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP3225SCD	156.25MHZ	NSC5349B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	100MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	102.564MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	125MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	133.33MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	133.333MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	148.5MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	156.25MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	100MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	102.564MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	125MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	133.33MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	133.333MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	148.5MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	156.25MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	100MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	102.564MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	125MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	133.33MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	133.333MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	148.5MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	156.25MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SB	100MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	102.564MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	125MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	148.5MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	156.25MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	100MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	102.564MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	125MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	148.5MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	156.25MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	100MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	102.564MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	125MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	148.5MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	156.25MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	100MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	102.564MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	125MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	148.5MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	156.25MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	100MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	102.564MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	125MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	148.5MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	156.25MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	100MHZ	NSC5402C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+3.3±0.33
NP5032SB	102.564MHZ	NSC5402C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+3.3±0.33
NP5032SB	125MHZ	NSC5402C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+3.3±0.33
NP5032SB	148.5MHZ	NSC5402C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+3.3±0.33
NP5032SB	156.25MHZ	NSC5402C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+3.3±0.33
