夸克汽车应用晶振,6G无线晶体,QTC7B25.0000FCT5I20R
频率:25MHZ

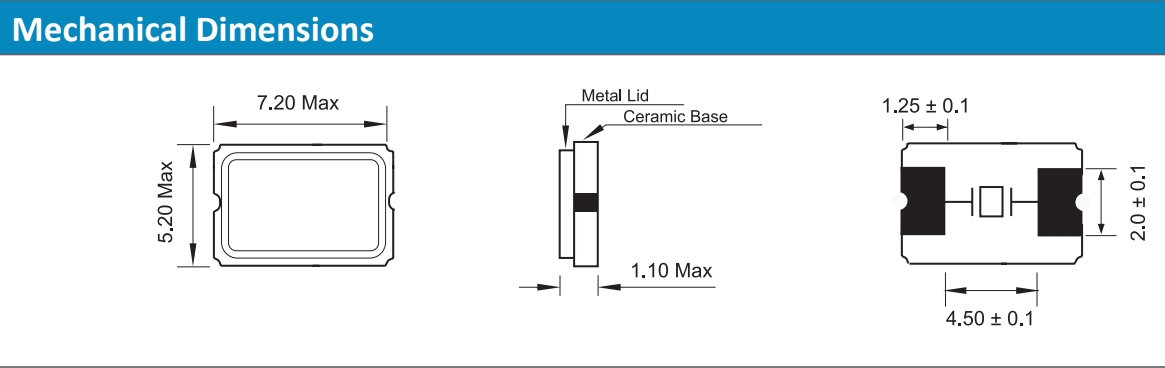

尺寸:7.0*5.0mm
夸克汽车应用晶振,6G无线晶体,QTC7B25.0000FCT5I20R,尺寸7.0*5.0mm,频率25MHZ,德国Quarztechnik晶振,德国晶振,两脚贴片晶振,无源谐振器,轻薄型晶振,SMD晶体,7050mm无源晶体,高质量晶振,低损耗晶振,高性能晶振,无线应用专用晶振,汽车应用晶振,高密度应用晶振,测试设备晶振,通信产品专用晶振,具有小尺寸高精度的特点,无源晶振产品适合用于范围十分广泛,尤其适合用于高密度应用,调制解调器,通信和测试设备,PMCIA,无线应用,汽车应用等领域.夸克汽车应用晶振,6G无线晶体,QTC7B25.0000FCT5I20R.
夸克汽车应用晶振,6G无线晶体,QTC7B25.0000FCT5I20R,尺寸7.0*5.0mm,频率25MHZ,德国Quarztechnik晶振,德国晶振,两脚贴片晶振,无源谐振器,轻薄型晶振,SMD晶体,7050mm无源晶体,高质量晶振,低损耗晶振,高性能晶振,无线应用专用晶振,汽车应用晶振,高密度应用晶振,测试设备晶振,通信产品专用晶振,具有小尺寸高精度的特点,无源晶振产品适合用于范围十分广泛,尤其适合用于高密度应用,调制解调器,通信和测试设备,PMCIA,无线应用,汽车应用等领域.夸克汽车应用晶振,6G无线晶体,QTC7B25.0000FCT5I20R.

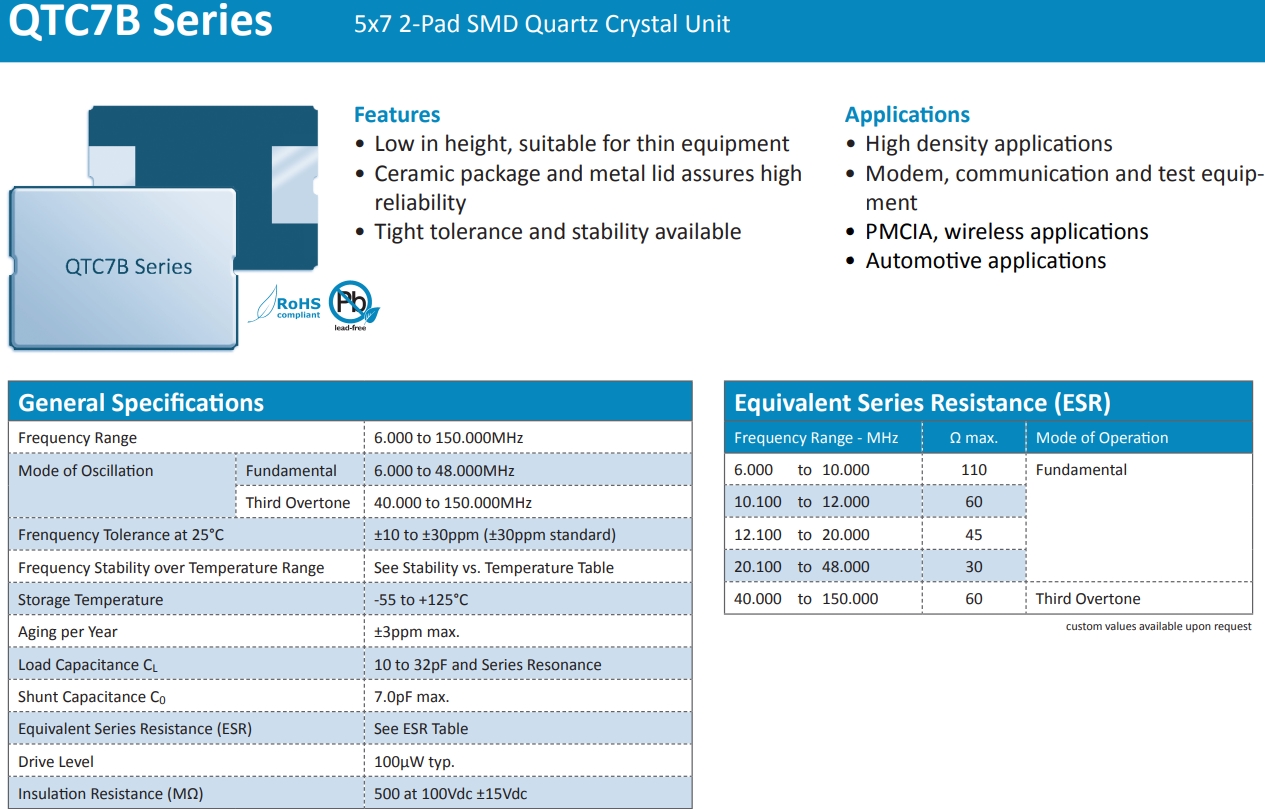

夸克汽车应用晶振,6G无线晶体,QTC7B25.0000FCT5I20R 参数表
General Specifications | |||||||||||
Frequency Range | 25.000MHz | ||||||||||
Mode of Oscillation | Fundamental | 6.000 to 48.000MHz | |||||||||
Third Overtone | 40.000 to 150.000MHz | ||||||||||
Frenquency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||
Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||
Storage Temperature | -55 to +125°C | ||||||||||
Aging per Year | ±3ppm max. | ||||||||||
Load Capacitance CL | 10 to 32pF and Series Resonance | ||||||||||
Shunt Capacitance C0 | 7.0pF max. | ||||||||||
Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||
Drive Level | 100μW typ. | ||||||||||
Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc |
谐振器产品特性:
高度低,适用于薄型设备
陶瓷包装和金属盖确保可靠性
更多相关Quarztechnik德国夸克晶振型号
Frequency | CL | Tolerance | Stability | Temp. Range | Part number | 晶振厂家 |
8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A8.00000FDT1I20M | Quarztechnik夸克晶振 |
10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A10.0000FDT1I20M | Quarztechnik夸克晶振 |
11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A11.0592FDT1I20M | Quarztechnik夸克晶振 |
12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A12.0000FDT1I20M | Quarztechnik夸克晶振 |
14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A14.31818FDT1I20M | Quarztechnik夸克晶振 |
14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A14.7456FDT1I20M | Quarztechnik夸克晶振 |
16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A16.0000FDT1I20M | Quarztechnik夸克晶振 |
19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A19.6608FDT1I20M | Quarztechnik夸克晶振 |
24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A24.0000FDT1I20M | Quarztechnik夸克晶振 |
25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A25.0000FDT1I20M | Quarztechnik夸克晶振 |
27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A27.0000FDT1I20M | Quarztechnik夸克晶振 |
32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC7A32.0000FDT1I20M | Quarztechnik夸克晶振 |
8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A8.00000FDT1I20M | Quarztechnik夸克晶振 |
11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A11.0592FDT1I20M | Quarztechnik夸克晶振 |
12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A12.0000FDT1I20M | Quarztechnik夸克晶振 |
14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A14.7456FDT1I20M | Quarztechnik夸克晶振 |
16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A16.0000FDT1I20M | Quarztechnik夸克晶振 |
20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A20.0000FDT1I20M | Quarztechnik夸克晶振 |
24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A24.0000FDT1I20M | Quarztechnik夸克晶振 |
25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A25.0000FDT1I20M | Quarztechnik夸克晶振 |
27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A27.0000FDT1I20M | Quarztechnik夸克晶振 |
32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC6A32.0000FDT1I20M | Quarztechnik夸克晶振 |
8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A8.00000FDT1I20M | Quarztechnik夸克晶振 |
12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A12.0000FDT1I20M | Quarztechnik夸克晶振 |
12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A12.2880FDT1I20M | Quarztechnik夸克晶振 |
15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A15.3600FDT1I20M | Quarztechnik夸克晶振 |
16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A16.0000FDT1I20M | Quarztechnik夸克晶振 |
18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A18.4320FDT1I20M | Quarztechnik夸克晶振 |
20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A20.0000FDT1I20M | Quarztechnik夸克晶振 |
24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A24.5760FDT1I20M | Quarztechnik夸克晶振 |
25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A25.0000FDT1I20M | Quarztechnik夸克晶振 |
27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A27.0000FDT1I20M | Quarztechnik夸克晶振 |
30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A30.0000FDT1I20M | Quarztechnik夸克晶振 |
40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A40.0000FDT1I20M | Quarztechnik夸克晶振 |
48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC5A48.0000FDT1I20M | Quarztechnik夸克晶振 |
16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3216.0000FDT1I20M | Quarztechnik夸克晶振 |
18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3218.4320FDT1I20M | Quarztechnik夸克晶振 |
20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3220.0000FDT1I20M | Quarztechnik夸克晶振 |
24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3224.0000FDT1I20M | Quarztechnik夸克晶振 |
25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3225.0000FDT1I20M | Quarztechnik夸克晶振 |
27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C | QTC3227.0000FDT1I20M | Quarztechnik夸克晶振 |
