LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C

LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°CLV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C

产品简介

LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C，尺寸为3225mm，频率为125MHZ，输出为LV-PECL，电压2.25~3.63V，频率稳定度50ppm，石英晶体振荡器，差分有源晶振,差分石英晶振,爱普生有源晶振,SPXO晶振,进口晶振，音影专用晶振，汽车胎压监测专用晶振，汽车充电桩晶振，产品主要应用于数字视频，汽车胎压监测，汽车充电桩，智能手机，投影机等领域，还可广泛用于数码电子设备等产品.

产品详情

1

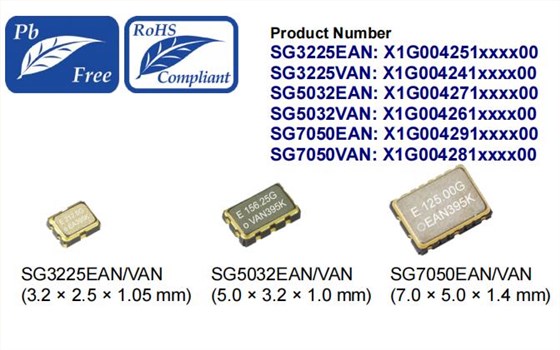

SG3225EAN SG3225VAN SG5032EAN SG5032VAN SG7050EAN SG7050VAN 1

LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C，尺寸为3225mm，频率为125MHZ，输出为LV-PECL，电压2.25~3.63V，频率稳定度50ppm，石英晶体振荡器，差分有源晶振,差分石英晶振,爱普生有源晶振,SPXO晶振,进口晶振，音影专用晶振，汽车胎压监测专用晶振，汽车充电桩晶振，产品主要应用于数字视频，汽车胎压监测，汽车充电桩，智能手机，投影机等领域，还可广泛用于数码电子设备等产品.2

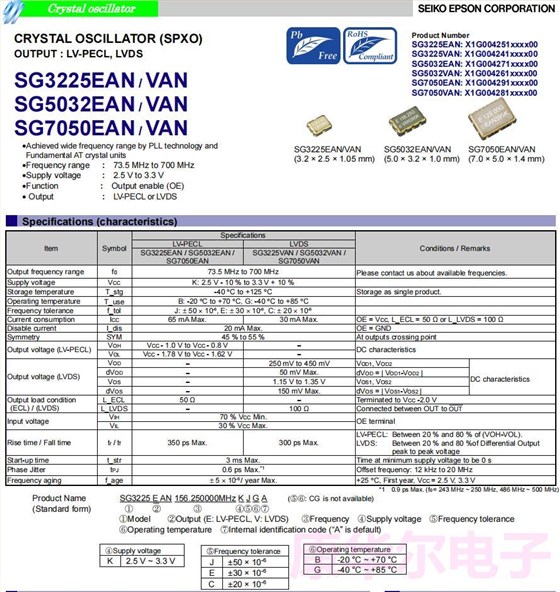

LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C 参数表

项目 符号 规格说明 条件
LV-PECL LVDS
SG3225EAN SG3225VAN
SG5032EAN SG5032VAN
SG7050EAN SG7050VAN
输出频率范围 f0 73.5 MHz to 700 MHz 请联系我们以便获取其它可用频率的相关信息。
电源电压 VCC K : 2.5 V to 3.3 V VCC= ±10 %
储存温度范围 T_stg -40 °C to +125 °C 存储为单一产品
工作温度范围 T_use B : -20 °C to +70 °C
G : -40 °C to +85 °C
频率稳定度 f_tol C : ±20 × 10-6
E : ±30 × 10-6
J : ±50 × 10-6
功耗 ICC 65 mA Max. 30 mA Max. OE = VCC
L_ECL = 50 Ω or L_LVDS = 100 Ω
f0= 700 MHz
输出禁用电流 I_dis 20 mA Max. OE = GND
占空比 SYM 45 % to 55 % 在输出交叉点
输出电压 VOH VCC- 1.0 V to VCC- 0.8 V - DC 特征
(LV-PECL) VOL VCC- 1.78 V to VCC-1.62 V -
输出电压 VOD - 250 mV to 450 mV VOD1, VOD2 DC 特征
(LVDS) dVOD - 50 mV Max. dVOD= | VOD1- VOD2|
VOS - 1.15 V to 1.35 V VOS1, VOS2
dVOS - 150 mV Max. dVOS= | VOS1- VOS2|
输出负载条件 L_ECL 50 Ω - 终止于 VCC- 2.0 V
(ECL) / (LVDS) L_LVDS - 100 Ω 连接到 OUT 与OUT之间
输入电压 VIH 70 % VCCMin. OE 终端
VIL 30 % VCCMax.
上升/下降时间 tr/tf 350 ps Max. - LV-PECL：20 % ~ 80 % of ( VOH- VOL).
- 300 ps Max. LVDS：20 % ~ 80 %微分输出峰-峰值
振荡启动时间 t_str 3 ms Max. 在电源电压最低时，所需时间为 0 秒
相位抖动 tPJ 0.6 ps Max. *1 抵消频率 : 12 kHz ~ 20 MHz
频率老化 f_aging ±5 × 10-6/ year Max. +25 °C , 第一年
VCC=2.5V or 3.3V,

产品特点：

通过PLL技术和基本AT晶体单元实现宽频率范围

频率范围： 73.5 MHz至700 MHz

电源电压： 2.5 V到3.3 V

功能：输出启用（OE）

输出： LV-PECL或LVDS3

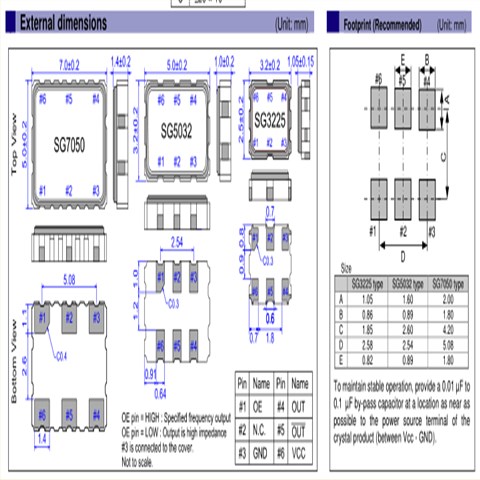

LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C 尺寸图

SG3225EAN_VAN 3225

更多爱普生进口有源晶振型号

EPSON晶振编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度 Freq. Tol./频率偏差
X1G0042510001 爱普生进口有源晶振 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510002 爱普生进口有源晶振 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510003 爱普生进口有源晶振 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510004 爱普生进口有源晶振 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510006 爱普生进口有源晶振 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510007 爱普生进口有源晶振 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510008 爱普生进口有源晶振 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510009 爱普生进口有源晶振 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510010 爱普生进口有源晶振 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510011 爱普生进口有源晶振 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510012 爱普生进口有源晶振 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510013 爱普生进口有源晶振 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510014 爱普生进口有源晶振 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510015 爱普生进口有源晶振 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510016 爱普生进口有源晶振 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510017 爱普生进口有源晶振 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510018 爱普生进口有源晶振 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510021 爱普生进口有源晶振 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510022 爱普生进口有源晶振 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510024 爱普生进口有源晶振 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510025 爱普生进口有源晶振 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510026 爱普生进口有源晶振 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510027 爱普生进口有源晶振 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510028 爱普生进口有源晶振 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510029 爱普生进口有源晶振 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510030 爱普生进口有源晶振 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510031 爱普生进口有源晶振 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510032 爱普生进口有源晶振 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510033 爱普生进口有源晶振 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510034 爱普生进口有源晶振 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510035 爱普生进口有源晶振 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510036 爱普生进口有源晶振 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510037 爱普生进口有源晶振 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510039 爱普生进口有源晶振 SG3225EAN 700.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510040 爱普生进口有源晶振 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510041 爱普生进口有源晶振 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510043 爱普生进口有源晶振 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510044 爱普生进口有源晶振 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510045 爱普生进口有源晶振 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510046 爱普生进口有源晶振 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510047 爱普生进口有源晶振 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510048 爱普生进口有源晶振 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510049 爱普生进口有源晶振 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510050 爱普生进口有源晶振 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510051 爱普生进口有源晶振 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510053 爱普生进口有源晶振 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510054 爱普生进口有源晶振 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510055 爱普生进口有源晶振 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510056 爱普生进口有源晶振 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510059 爱普生进口有源晶振 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510060 爱普生进口有源晶振 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510062 爱普生进口有源晶振 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510063 爱普生进口有源晶振 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510064 爱普生进口有源晶振 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510065 爱普生进口有源晶振 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510066 爱普生进口有源晶振 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510067 爱普生进口有源晶振 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510068 爱普生进口有源晶振 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510069 爱普生进口有源晶振 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510070 爱普生进口有源晶振 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510072 爱普生进口有源晶振 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510073 爱普生进口有源晶振 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510074 爱普生进口有源晶振 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510079 爱普生进口有源晶振 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510080 爱普生进口有源晶振 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G0042510083 爱普生进口有源晶振 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510084 爱普生进口有源晶振 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510087 爱普生进口有源晶振 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510088 爱普生进口有源晶振 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510091 爱普生进口有源晶振 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510092 爱普生进口有源晶振 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G0042510100 爱普生进口有源晶振 SG3225EAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510103 爱普生进口有源晶振 SG3225EAN 644.531200 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G0042510104 爱普生进口有源晶振 SG3225EAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510105 爱普生进口有源晶振 SG3225EAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510106 爱普生进口有源晶振 SG3225EAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510107 爱普生进口有源晶振 SG3225EAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510111 爱普生进口有源晶振 SG3225EAN 133.330000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510112 爱普生进口有源晶振 SG3225EAN 144.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510113 爱普生进口有源晶振 SG3225EAN 174.703100 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510114 爱普生进口有源晶振 SG3225EAN 320.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510115 爱普生进口有源晶振 SG3225EAN 500.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G0042510121 爱普生进口有源晶振 SG3225EAN 161.132812 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
LV-PECL|X1G0042510003|SG3225EAN|125MHZ|-40~+85°C

SG3225EAN SG3225VAN SG5032EAN SG5032VAN SG7050EAN SG7050VAN 2

6
