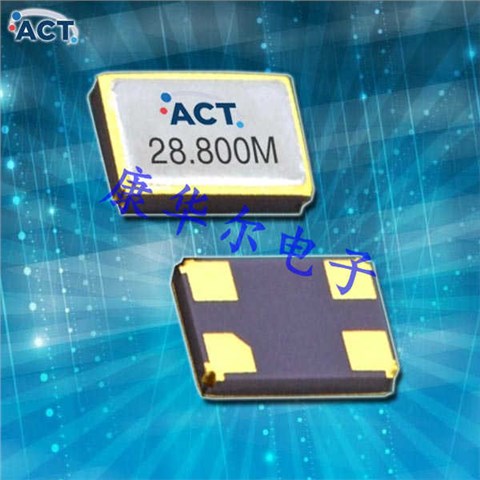

QA2500GKLGOFL‐PF,ACT晶振,531SMX‐4,5032mm参数表
![]() |
Specification | Remarks | ||||||
Frequency range | F_nom | 25.0MHz | Fundamental | |||||
Frequency tolerance | F_tol | ±10.0ppm ~ ±50.0ppm | ||||||
Frequency stability over operating temperature range | F_stb | ±10.0ppm ~ ±50.0ppm | Table 2 | |||||
Operating temperature range | T_use | ‐20°C ~ +70°C, ‐30°C~ +85°C, ‐40°C ~ +85°C | Table 2 | |||||
Storage temperature | T_stg | ‐55°C ~ +125°C | ||||||
Load capacitance | CL | 8.0pF ~ 30.0pF, series | ||||||
Equivalent series resistance | ESR | Table 1 | ||||||
Shunt capacitance | C0 | 7.0pF max | ||||||
Drive level | DL | 300μW max | 100μW typical | |||||
Frequency aging | F_age | ±2.0ppm at 25°C, 1st Year | For ±1.0ppm please enquire | |||||
Moisture sensitivity level | MSL | 1 (unlimited) | ||||||
Electrostatic discharge | ESD | Not applicable | ||||||
Insulation resistance | IR | 500MΩ min | At 100V DC |

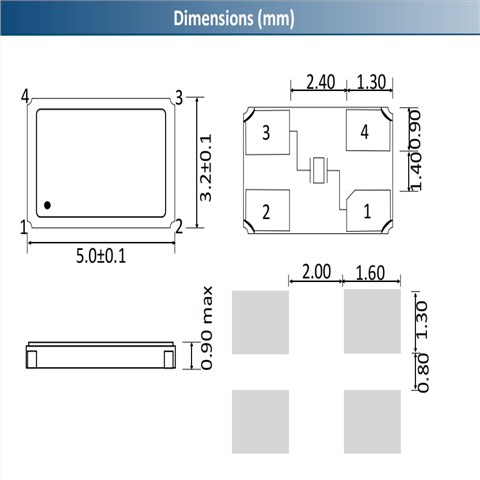

QA2500GKLGOFL‐PF,ACT晶振,531SMX‐4,5032mm尺寸图
