6035mm,I60系列手持产品晶振,I6030-26.000-18,ITTI水晶振动子,26MHZ特点:

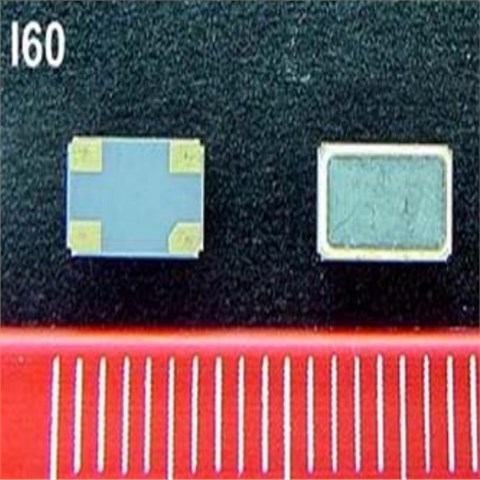

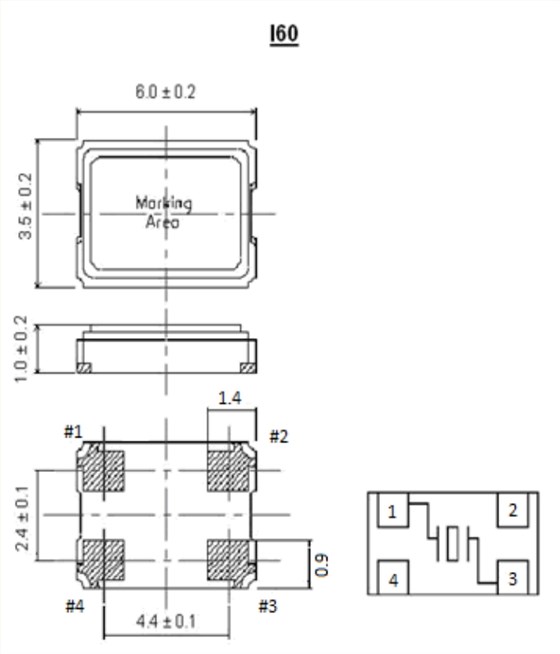

尺寸6.0x3.5mm毫米表面安装
无铅环保贴片晶振晶体类型
高精度高性能
6035mm,I60系列手持产品晶振,I6030-26.000-18,ITTI水晶振动子,26MHZ 参数表

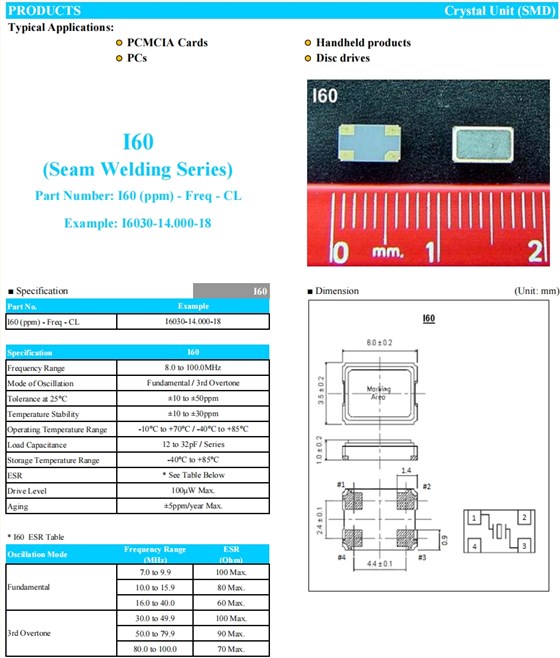

SpecificationI60 | ||
Frequency Range | 26.0MHz | |
Mode of Oscillation | Fundamental / 3rd Overtone | |
Tolerance at 25°C | ±10 to ±50ppm | |
Temperature Stability | ±10 to ±30ppm | |
Operating Temperature Range | -10°C to +70°C / -40°C to +85°C | |
Load Capacitance | 12 to 32pF / Series | |
Storage Temperature Range | -40°C to +85°C | |
ESR | * See Table Below | |
Drive Level | 100μW Max. | |
Aging | ±5ppm/year Max. |
