EA1620MA16-26.000M TR\美国日蚀晶振\6G无线网络晶振，尺寸为2.00x1.60mm，频率26MHZ，ECLIPTEK日蚀晶振，美国进口晶振，石英晶体谐振器，水晶振动子，贴片石英晶振，SMD晶振，四脚贴片晶振，轻薄型晶体，石英晶振，石英贴片晶振，无源谐振器，无源贴片晶振，高性能晶振，高品质晶振，无铅环保晶振，无线网络晶振，通讯产品晶振，智能家居晶振，小型设备晶振，便携式设备晶振，平板电脑专用晶振，具有良好的可靠性能以及稳定性能。
晶振晶体产品十分适合用于无线网络，通讯产品，智能家居，小型设备，便携式设备，平板电脑等领域.EA1620MA16-26.000M TR\美国日蚀晶振\6G无线网络晶振.
EA1620MA16-26.000M TR\美国日蚀晶振\6G无线网络晶振参数表
| Nominal Frequency | 26MHz | ||||||||||
| Frequency Tolerance/Stability |
±50ppm at 25°C, ±100ppm over -10°C to +60°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over -10°C to +60°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -10°C to +60°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over -10°C to +60°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over -10°C to +60°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±10ppm at 25°C, ±10ppm over -10°C to +60°C ±10ppm at 25°C, ±10ppm over -20°C to +70°C ±10ppm at 25°C, ±10ppm over -30°C to +75°C |
||||||||||
| Aging at 25°C | ±3ppm/year Maximum | ||||||||||
| Load Capacitance | Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant | ||||||||||
| Shunt Capacitance | 5pF Maximum | ||||||||||
| Equivalent Series Resistance |
160 Ohms Maximum over Nominal Frequency of 16MHz to 17.999999MHz 150 Ohms Maximum over Nominal Frequency of 18MHz to 19.999999MHz 120 Ohms Maximum over Nominal Frequency of 20MHz to 25.999999MHz 100 Ohms Maximum over Nominal Frequency of 26MHz to 29.999999MHz 80 Ohms Maximum over Nominal Frequency of 30MHz to 35.999999MHz 60 Ohms Maximum over Nominal Frequency of 36MHz to 54MHz |
||||||||||
| Mode of Operation | AT-Cut Fundamental | ||||||||||
| Drive Level | 100µWatts Maximum | ||||||||||
| Spurious Response |
Measured from Fo to Fo +5000ppm -3dB Minimum |
||||||||||
| Storage Temperature Range | -40°C to +125°C | ||||||||||
 Insulation Resistance
|
Measured at 100Vdc 500 Megaohms Minimum |
||||||||||

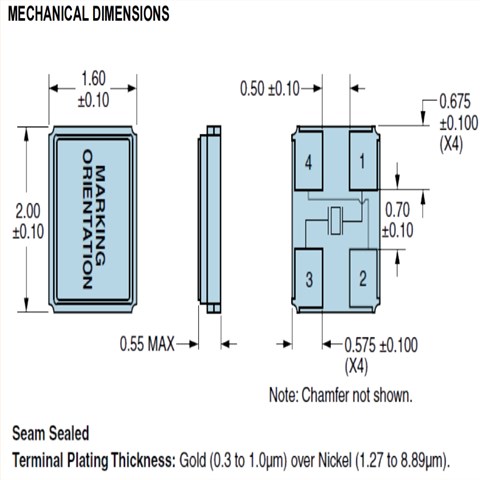

EA1620MA16-26.000M TR\美国日蚀晶振\6G无线网络晶振 尺寸图
石英晶振产品特性：
优异的老化特性
符合RoHS标准且无铅
更多相关ECLIPTEK日蚀晶振型号
| Part Number | Package Description | Frequency Stability | Operating Temperature Range | Aging | 品牌 |
| EA5070HA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070HAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070JA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070JAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±20ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070KA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070MA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
   EA5070KA12-6.000M
|
SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 美国日蚀晶振 |
| EA5070KA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070KAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070LAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -20°C to +70°C | ±3ppm | 日蚀晶振 |
| EA5070MA12-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA14-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA16-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA18-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA20-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA22-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA24-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA27-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MA30-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
| EA5070MAS-6.000M | SMD Ceramic 5.0mm x 7.0mm | ±10ppm | -40°C to +85°C | ±3ppm | 日蚀晶振 |
   EA5070AA12-6.000M
|
SMD Ceramic 5.0mm x 7.0mm | ±50ppm | 0°C to +70°C | ±3ppm | 日蚀晶振 |
