AS-25.000-20-F-SMD-TR,AS-SMD,卢柏大尺寸晶振,25MHZ，尺寸10.3x43.8mm，频率25MHZ，欧美无源晶振，Rubyquartzcrystal，SMD石英晶体，无源贴片晶振，贴片石英晶振，无源晶振，石英晶振，SMD晶振，大尺寸晶振，25MHZ高质量晶振，石英振动子，低损耗晶振，低功耗晶振，低耗能晶振，高质量晶振，高性能晶振，智能家电晶振，影音系统晶振，游戏设备晶振，移动设备晶振，数字视频晶振，便携式设备晶振，蓝牙耳机晶振，具有高性能低损耗的特点。
谐振器产品被广泛应用各个领域之中，特别适合用于智能家电，影音系统，游戏设备，移动设备，数字视频，便携式设备，蓝牙耳机等应用。AS-25.000-20-F-SMD-TR,AS-SMD,卢柏大尺寸晶振,25MHZ.

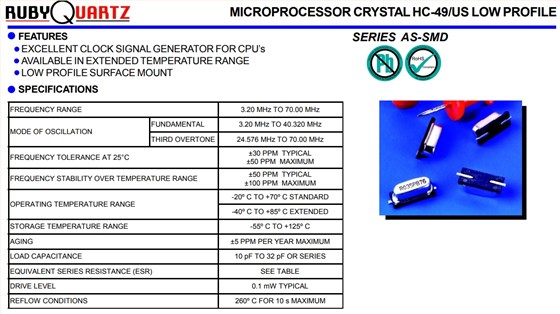

AS-25.000-20-F-SMD-TR,AS-SMD,卢柏大尺寸晶振,25MHZ参数表
| FREQUENCY RANGE | 25.00 MHz | ||||||||||||||||||||||||||||||
| MODE OF OSCILLATION | FUNDAMENTAL | 3.20 MHz TO 40.320 MHz | |||||||||||||||||||||||||||||
| THIRD OVERTONE | 24.576 MHz TO 70.00 MHz | ||||||||||||||||||||||||||||||
| FREQUENCY TOLERANCE AT 25°C |
±30 PPMTYPICAL ±50 PPMMAXIMUM |
||||||||||||||||||||||||||||||
| FREQUENCY STABILITY OVER TEMPERATURE RANGE |
±50 PPMTYPICAL ±100 PPMMAXIMUM |
||||||||||||||||||||||||||||||
| OPERATING TEMPERATURE RANGE | -20º C TO +70º C STANDARD | ||||||||||||||||||||||||||||||
| -40º C TO +85º C EXTENDED | |||||||||||||||||||||||||||||||
| STORAGE TEMPERATURE RANGE | -55º C TO +125º C | ||||||||||||||||||||||||||||||
| AGING | ±5 PPM PER YEAR MAXIMUM | ||||||||||||||||||||||||||||||
| LOAD CAPACITANCE | 10 pF TO 32 pF OR SERIES | ||||||||||||||||||||||||||||||
| EQUIVALENT SERIES RESISTANCE (ESR) | SEE TABLE | ||||||||||||||||||||||||||||||
| DRIVE LEVEL | 0.1 mW TYPICAL | ||||||||||||||||||||||||||||||
| REFLOW CONDITIONS | 260º C FOR 10 s MAXIMUM | ||||||||||||||||||||||||||||||

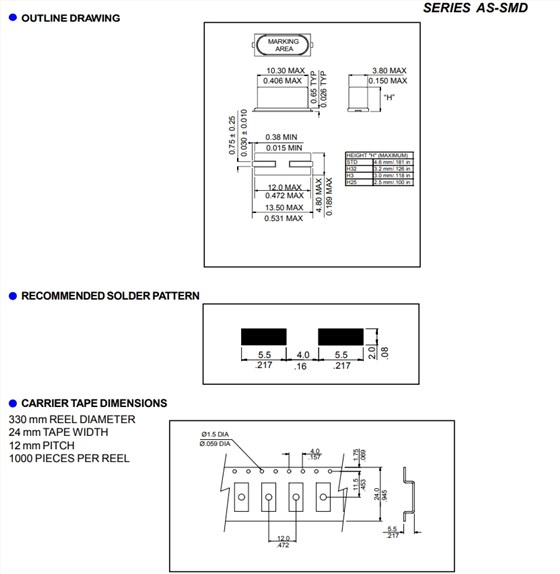

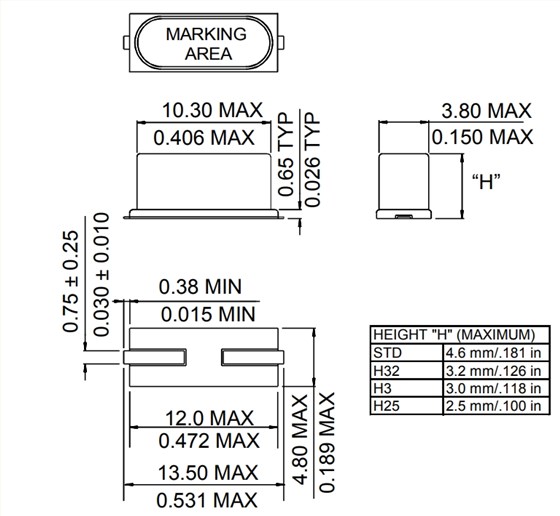

AS-25.000-20-F-SMD-TR,AS-SMD,卢柏大尺寸晶振,25MHZ尺寸图
AS-25.000-20-F-SMD-TR,AS-SMD,卢柏大尺寸晶振,25MHZ
SMD晶体产品特点:
卓越的CPU时钟信号发生器
可在扩展的温度范围内使用
薄型表面安装
