8Y-19.200MAAE-T,2016mm,-20°C~70°C,19.2MHZ

8Y-19.200MAAE-T,2016mm,-20°C~70°C,19.2MHZ,尺寸为2016mm,频率为19.2MHZ,频率稳定度30ppm,台湾进口晶振，SMD晶振,2016mm晶振,TXC晶振,小尺寸晶振,石英晶体,石英晶体谐振器，音叉晶体，无源晶振，智能手机晶振，网络设备晶振，蓝牙耳机晶振，测量测试晶振，医疗产品晶振，无线模块晶振，5G室外基站晶振，8Y-26.000MAAE-T晶振，8Y-25.000MAAB-T晶振。

贴片石英晶振产品主要应用于蓝牙耳机，智能手机，网络设备，测量测试，医疗产品，无线模块，5G室外基站，可视化智能家居，小型设备，蓝牙，无线局域网，传呼机，DSC显示,电视，电脑外围设备，消费产品等领域。8Y-19.200MAAE-T,2016mm,-20°C~70°C,19.2MHZ.8Y-19.200MAAE-T,2016mm,-20°C~70°C,19.2MHZ 参数表

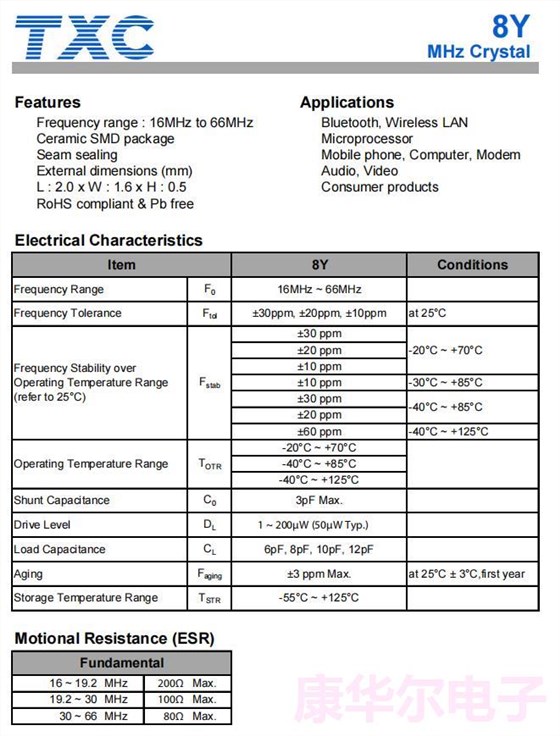

Item		8Y	Conditions
Frequency Range	F0	16MHz ~ 66MHz
Frequency Tolerance	Ftol	±30ppm, ±20ppm, ±10ppm	at 25°C
Frequency Stability over Operating Temperature Range (refer to 25°C)	Fstab	±30 ppm	-20°C ~ +70°C
		±20 ppm
		± 10 ppm
		± 10 ppm	-30°C ~ +85°C
		±30 ppm	-40°C ~ +85°C
		±20 ppm
		±60 ppm	-40°C ~ +125°C
Operating Temperature Range	TOTR	-20°C ~ +70°C
		-40°C ~ +85°C
		-40°C ~ +125°C
Shunt Capacitance	C0	3pF Max.
Drive Level	DL	1 ~ 200μW (50μW Typ.)
Load Capacitance	CL	6pF, 8pF, 10pF, 12pF
Aging	Faging	±3 ppm Max.	at 25°C ± 3°C,first year
Storage Temperature Range	TSTR	-55°C ~ +125°C

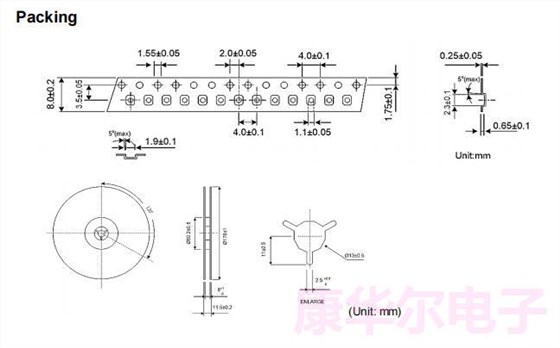

8Y-19.200MAAE-T,2016mm,-20°C~70°C,19.2MHZ 尺寸图包装图

8Y-19.200MAAE-T晶振 特点

频率范围:16MHz ~ 66MHz
陶瓷SMD封装
接缝密封
外形尺寸(mm)
L: 2.0 × W: 1.6 × H: 0.5
符合RoHS标准，不含铅
