7050mmTCXO晶振,404系列有源晶振,米利伦晶振

产品简介

7050mmTCXO晶振,404系列有源晶振,米利伦晶振，尺寸7.0×5.0mm，频率范围10~27MHZ，MTI-milliren有源晶振，温补石英振荡器，7050mm有源晶振，TCXO晶体振荡器，贴片温补晶振，有源温补振荡器，温度补偿晶体振荡器，四脚有源晶振，低电压有源晶振，低抖动有源晶振，低相位有源晶振，低相噪有源晶振，低耗能有源晶振，无人机有源晶振，罗拉模块有源晶振，北斗模块有源晶振，仪器仪表有源晶振，测试测量有源晶振，医疗设备有源晶振，具有低电压低相位的特点。

有源晶振产品比较常用于无人机，罗拉模块，北斗模块，仪器仪表，测试测量，医疗设备等应用场景。7050mmTCXO晶振,404系列有源晶振,米利伦晶振.

产品详情

有源晶振产品比较常用于无人机，罗拉模块，北斗模块，仪器仪表，测试测量，医疗设备等应用场景。7050mmTCXO晶振,404系列有源晶振,米利伦晶振.

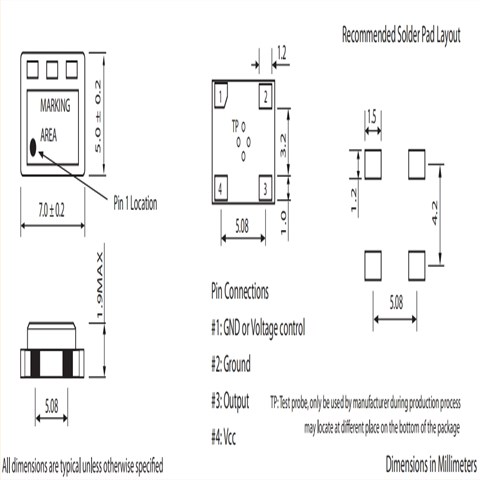

7050mmTCXO晶振,404系列有源晶振,米利伦晶振参数表

Frequency Range			10 MHz to 27 MHz
Standard Frequency			12.6/12.8/13.0/14.4/14.85/16.8/19.2/19.44/19.68/19.8 MHz 5.0 V ±5%; 3.3V±5%; 3.0V±5%; 2.8V±5%
Input Voltage (Vcc)
Input Current			2.0 mA Maximum at 3 V (25°C)
Frequency Stability vs. Temperature			±1.5 ppm;±2 ppm;±2.5 ppm;±5 ppm;
Temperature Range			0° C to 70° C; -40° C to 85° C; 0° C to 50° C; -30° C to 75° C ±2.5 ppm / -30°C to 75°C
Standard Stability
Frequency vs. Voltage			±0.2 ppm maximum / V ± 5%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1 ppm Maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped Sine wave
Output Waveform
Output Level			1.0Vp-p minimum for Vcc=5.0V;0.8Vp-pminimum for Vcc=3.3V ±10 ppm Minimum over control voltage range
Controllable Frequency Option
Control Voltage (Vc)			2.5±2.0 VDC for Vcc = 5 VDC; 1.65±1.5 VDC for Vcc = 3.3 VDC 2.5±0.5 V DC for 5.0V part; 1.65±0.4 VDC for 3.3V part
Setability of Vc at Fnom, 25°C
