欧美小尺寸SUNTSU晶振,SXT22410AA16-30.000M四脚晶振,6G无线网晶振,美国SUNTSU晶振公司，超小型晶振，无源晶振，欧美晶振，贴片晶振，四脚晶振，高精度晶振，6G信号放大器晶振，2520晶振，石英晶振，±10ppm/±10ppm（公差/稳定性）可用超微型包装切割基本磁带和卷轴，蓝牙晶振，6G无线网晶振，高密度应用程序，PCMCIA，无线应用设备，计算机和调制解调器。
欧美小尺寸SUNTSU晶振,SXT22410AA16-30.000M四脚晶振,6G无线网晶振

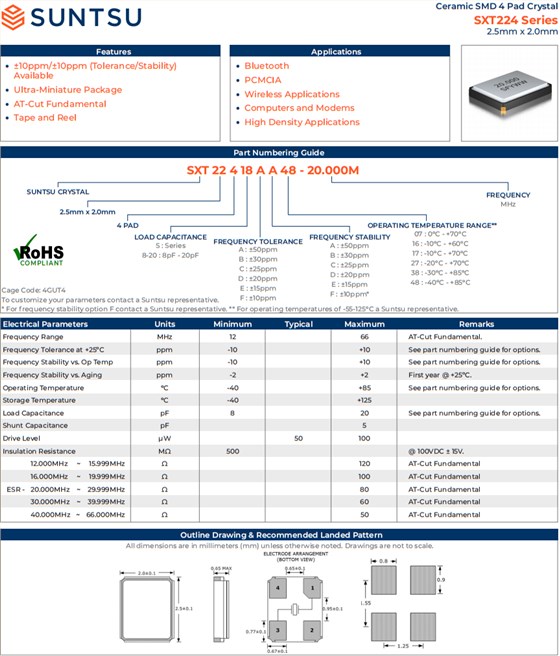

| 电气参数 | 单位 | 最小值 | 典型的 | 最大值 | 注意 |
| 频率范围 | MHz | 12 | 66 | AT-Cut Fundamental. | |
| 频率公差 at +25ºC | ppm | 10 | 10 | See part numbering guide for options. | |
| 工作温度下的频率稳定度 | ppm | 10 | 10 | See part numbering guide for options. | |
| 老化 | ppm | 2 | 2 | First year @ +25ºC. | |
| 工作温度 | °C | 40 | 85 | See part numbering guide for options. | |
| 储存温度 | °C | 40 | 125 | ||
| 负载电容 | pF | 8 | 20 | See part numbering guide for options. | |
| 并联电容 | pF | 3 | |||
| 驱动电平 | µW | 50 | 100 | ||
| 绝缘电阻 | M? | 500 | @ 100VDC ± 15V. |
欧美小尺寸SUNTSU晶振,SXT22410AA16-30.000M四脚晶振,6G无线网晶振
| SUNTSU原厂编码 | 封装尺寸 | 负载电荷 | 频率偏差度 | 频率 |
| SXT22410AA07-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT22410AA07-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT22410AA07-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT22410AA07-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT22410AA07-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT22410AA07-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT22410AA07-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT22410AA07-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT22410AA07-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT22410AA07-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT22410AA07-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT22410AA07-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT22410AA07-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT22410AA07-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT22410AA07-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT22410AA07-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT22410AA07-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT22410AA07-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT22410AA07-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT22410AA07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT22410AA07-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 37.400M |
| SXT22410AA07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT22410AA07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT22410AA07-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 48.000M |
| SXT22410AA07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 50.000M |
| SXT22410AA16-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT22410AA16-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT22410AA16-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT22410AA16-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT22410AA16-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT22410AA16-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT22410AA16-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT22410AA16-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT22410AA16-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT22410AA16-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT22410AA16-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT22410AA16-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT22410AA16-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT22410AA16-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT22410AA16-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT22410AA16-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT22410AA16-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT22410AA16-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT22410AA16-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT22410AA16-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT22410AA16-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 37.400M |
| SXT22410AA16-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT22410AA16-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT22410AA16-48.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 48.000M |
| SXT22410AA16-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 50.000M |
| SXT22410AA17-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT22410AA17-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT22410AA17-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT22410AA17-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT22410AA17-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT22410AA17-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT22410AA17-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT22410AA17-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT22410AA17-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT22410AA17-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT22410AA17-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT22410AA17-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT22410AA17-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT22410AA17-24.576M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT22410AA17-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
