QC1624.0000F18B42R,Qantek家电影音晶振,QC16四脚石英晶体，尺寸1.6x1.2mm，频率24MHZ，康泰克无源晶振，美国进口晶振，SMD晶体谐振器，无源SMD晶体，无源晶振，石英贴片晶振，石英无源晶振，1612石英贴片晶振，石英谐振器，SMD晶振，24MHZ贴片晶振，环保晶振，家电影音专用晶振，可穿戴设备晶振，平板电脑晶振，数字视频晶振，消费电子晶振，无线局域网晶振，寻呼机晶振，蓝牙音响晶振，智能家居晶振，高性能晶振，高品质晶振，低功耗晶振，低损耗晶振，低成本晶振，低老化晶振，具有高品质高性能的特点。
在极端严酷的环境条件下,石英晶振也能正常工作,具有稳定的起振特性,高耐热性,耐热循环性和耐振性等，适合用于家电影音，可穿戴设备，平板电脑，数字视频，消费电子，无线局域网，寻呼机，蓝牙音响等领域。QC1624.0000F18B42R,Qantek家电影音晶振,QC16四脚石英晶体.
QC1624.0000F18B42R,Qantek家电影音晶振,QC16四脚石英晶体参数表
| General Specifications | ||||||||||||||||
| Frequency Range | 24.000MHz (Fundamental) | |||||||||||||||
| Frequency Tolerance at 25°C | ±15 to ±30ppm (±30ppm standard) | |||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | |||||||||||||||
| Storage Temperature | -55 to +125°C | |||||||||||||||
| Aging per Year | ±3ppm max. | |||||||||||||||
| Load Capacitance CL | 7 to 32pF and Series Resonance | |||||||||||||||
| Shunt Capacitance C0 | 3.0pF | |||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | |||||||||||||||
| Drive Level | 100μW max. | |||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | |||||||||||||||

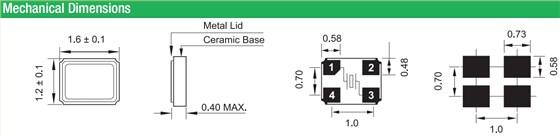

QC1624.0000F18B42R,Qantek家电影音晶振,QC16四脚石英晶体 尺寸图
QC1624.0000F18B42R,Qantek家电影音晶振,QC16四脚石英晶体
晶振晶体产品特点:
1.2x1.6x 0.4mm超小型封装
带金属盖的接缝密封陶瓷包装
确保高精度和可靠性
