20MHZ/NX2520SA-20.000000MHZ/无线设备/2520mm/±10ppm，尺寸为2520mm,频率为20MHZ,频率稳定性为±10ppm,日本电波晶振,NDK晶振,无源晶体,石英晶体谐振器,SMD晶振,无源贴片晶振,水晶振动子，石英晶振，高质量晶振，无线设备晶振，通信产品晶振，消费产品专用晶振，NX2520SA-32.000000MHZ无源晶振，NX2520SA-26.000000MHZ日本进口晶振。
贴片石英晶振产品主要应用领域：电信设备，短距离无线设备，消费者的设备，网络设备，通信产品等领域。20MHZ/NX2520SA-20.000000MHZ/无线设备/2520mm/±10ppm.
20MHZ/NX2520SA-20.000000MHZ/无线设备/2520mm/±10ppm参数表
| 项目 | 标志 | 价值 | 单位 | |
| 标称频率 |
|
16 ≤ F ≤ 80 | 16 ≤ F ≤ 54 | 兆赫 |
| 包装尺寸(长×宽×高) | - | 2.5×2.0×0.50 | 毫米 | |
| 泛音阶 | - | 基本的 |
|
- |
| 频率容差(@ +25℃) | - | 15 | 10 | 百万分率 |
| 频率温度特性(参考+25°C) | - | 25 | 10 | 百万分率 |
| 等效串联电阻 | - | 最大值80 (16 ≤ F < 20MHz) |
|
Ω |
| 最大值60 (20 ≤ F < 30MHz) |
|
|||
| 最大值50 (30 ≤ F < 35MHz) |
|
|||
| 最大值40 (35 ≤ F ≤ 80MHz) |
|
|||
| 负载电容 | CL | 8 |
|
性能因素(Performance Factor) |
| 驾驶水平 | - | 10(最大值。100) |
|
微瓦 |
| 工作温度范围 | Topr | -40至+85 | -20至+75 | ℃ |
| 储存温度范围 | Tstr | -40至+85 |
|
℃ |
| 绝缘电阻 | - | 量滴500 | mω | |
| 密封性 | - | 最大值1.1ppb | Pa m3/s | |
| 规格号 | - | CSW标准-6 | CSX标准-1 | - |
| NDK Spec. No. |
频率范围 [MHz] |
频率公差 (@ +25°C) |
频率和temp.特点
(参考温度应为+25°C)
|
操作温度范围 | 等效电阻 | |||||||||||||||||||||||
| Min. | Max. | [×10-6] | [×10-6] | [°C] | [Ω] | |||||||||||||||||||||||
| STD-CSX-1 | 16三 | < 20 | ±10 | ±10 | -20~+75 | 80 | ||||||||||||||||||||||
| 20三 | <30 | 60 | ||||||||||||||||||||||||||
| 30三 | < 35 | 50 | ||||||||||||||||||||||||||
| 35三 | 三80 | 40 | ||||||||||||||||||||||||||
| STD-CSW-6 | 16三 | < 20 | ±15 | ±25 | -40~+85 | 80 | ||||||||||||||||||||||
| 20三 | <30 | 60 | ||||||||||||||||||||||||||
| 30三 | < 35 | 50 | ||||||||||||||||||||||||||
| 35三 | 三80 |
40 |
||||||||||||||||||||||||||

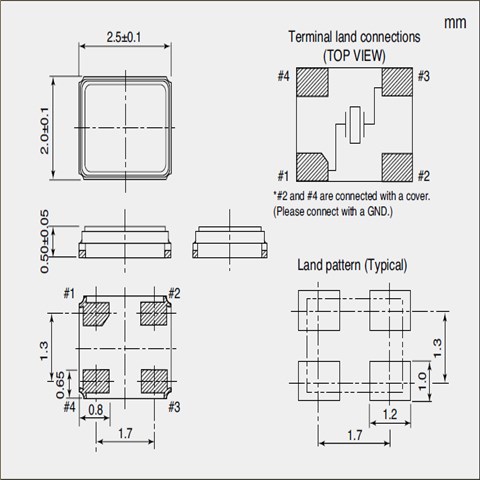

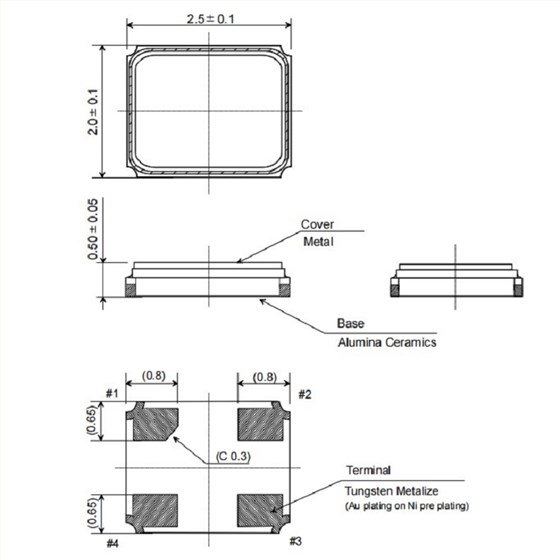

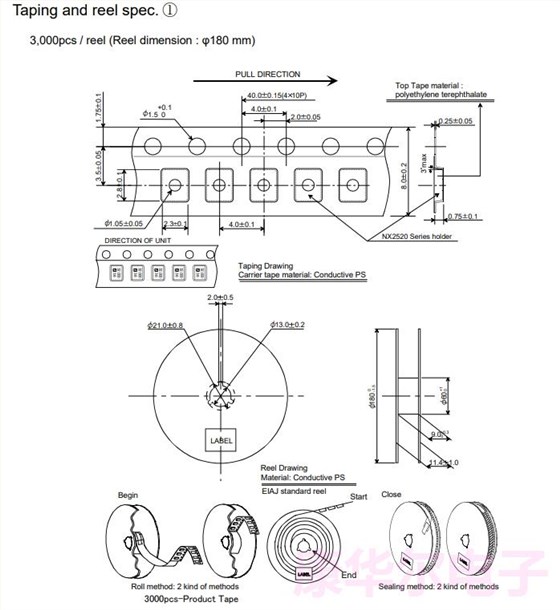

20MHZ/NX2520SA-20.000000MHZ/无线设备/2520mm/±10ppm 尺寸图

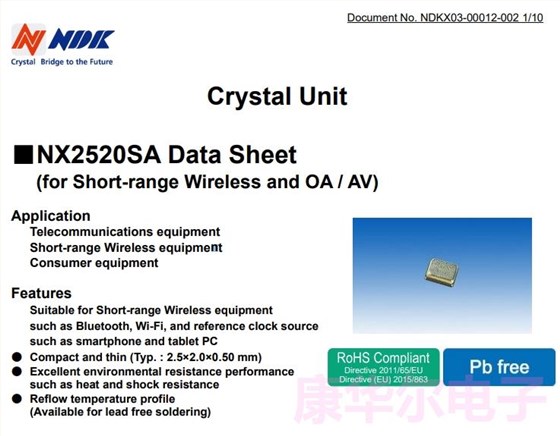

NX2520SA-20.000000MHZ晶振 特点：
适用于短距离无线设备
如蓝牙、Wi-Fi和参考时钟源
比如智能手机和平板电脑
●紧凑、薄(型)。: 2.5×2.0×0.50 mm)
●优异的耐环境性能
如耐热性和抗震性
●回流温度曲线
(可进行无铅焊接)
更多相关的NDK晶振型号
| 原厂编码 | 厂家 | 型号 | 系列 | 频率 | 频率稳定度 |
| NX2520SA-16MHZ-STD-CSW-4 | NDK晶振 | NX2520SA | MHz Crystal | 16MHz | ±15ppm |
| NX2520SA-16.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 16MHz | ±10ppm |
| NX2520SA-24.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 24MHz | ±10ppm |
| NX2520SA-24.000000MHZ-B8 | NDK晶振 | NX2520SA | MHz Crystal | 24MHz | ±10ppm |
| NX2520SA-48.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 48MHz | ±10ppm |
| NX2520SA-16MHZ-EXS00A-CS05116 | NDK晶振 | NX2520SA | MHz Crystal | 16MHz | ±15ppm |
| NX2520SA-25.000M-STD-CSW-5 | NDK晶振 | NX2520SA | MHz Crystal | 25MHz | ±25ppm |
| NX2520SA-26MHZ-STD-CSX-1 | NDK晶振 | NX2520SA | MHz Crystal | 26MHz | ±10ppm |
| NX2520SA-26.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 26MHz | ±10ppm |
| NX2520SA-30.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 30MHz | ±10ppm |
| NX2520SA-24.576000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 24.576MHz | ±10ppm |
| NX2520SA-20.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 20MHz | ±10ppm |
| NX2520SA-32.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 32MHz | ±10ppm |
| NX2520SA-44.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 44MHz | ±10ppm |
| NX2520SA-26.000000MHZ-B9 | NDK晶振 | NX2520SA | MHz Crystal | 26MHz | ±10ppm |
| EXS00A-CS05400 | NDK晶振 | NX2520SA | MHz Crystal | 19.2MHz | ±30ppm |
| NX2520SA-16MHZ-STD-CSW-5 | NDK晶振 | NX2520SA | MHz Crystal | 16MHz | ±25ppm |
| NX2520SA-16.000000MHZ-W1 | NDK石英晶振 | NX2520SA | MHz Crystal | 16MHz | ±20ppm |
| NX2520SA-40.000000MHZ | NDK晶振 | NX2520SA | MHz Crystal | 40MHz | ±10ppm |
| NX2520SA-40.000000MHZ-W2 | NDK晶振 | NX2520SA | MHz Crystal | 40MHz | ±10ppm |
| NX2520SA-40.000000MHZ-W3 | NDK晶振 | NX2520SA | MHz Crystal | 40MHz | ±10ppm |
| NX2520SA-26MHZ-EXS00A-CS05497 | NDK晶振 | NX2520SA | MHz Crystal | 26MHz | ±10ppm |
