NT3225SA-19.2M-DJA3002B|19.2MHz|3225|TCXO|2.8V|，车载晶振，日本NDK晶振公司，支持低电源电压。（支持直流+1.7 V到+3.3V。）紧凑和轻，高度，立方体积，重量最大。分别分别为1.0 mm、0.007 cm3和0.024 g。低功耗。是一个表面安装的晶体振荡器。（有可能进行回流焊。）是无铅的。满足使用无铅焊料进行再流分析的要求
NT3225SA-19.2M-DJA3002B|19.2MHz|3225|TCXO|2.8V|

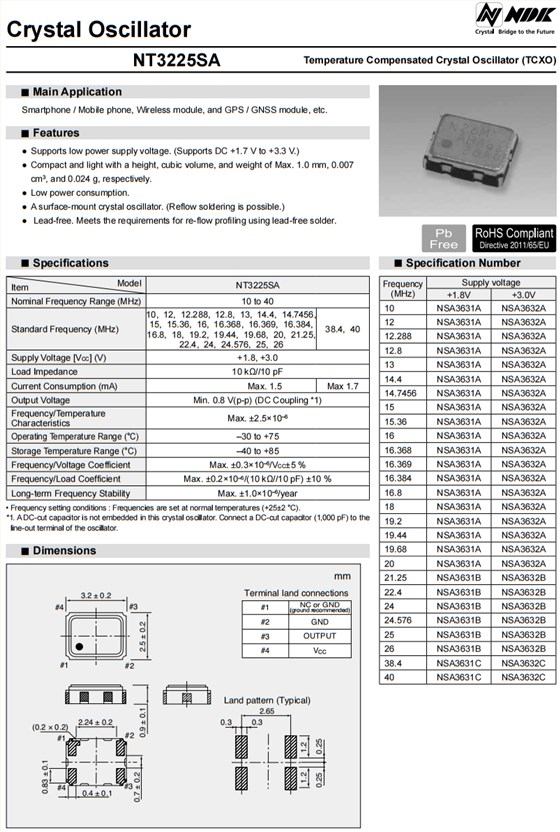

| Item | Model | NT3225SA | ||||
| Nominal Frequency Range (MHz) | 19.2 | |||||
| Standard Frequency (MHz) |
10,12,12.288,12.8,13,14.4,14.7456, 15,15.36,16,16.368,16.369,16.384, 16.8,18,19.2,19.44,19.68,20,21.25, 22.4,24,24.576,25,26 |
38.4,40 | ||||
| Supply Voltage [VCC] (V) | +1.8, +3.0 | |||||
| Load Impedance | 10 kΩ//10 pF | |||||
| Current Consumption (mA) | Max. 1.5 | Max 1.7 | ||||
| Output Voltage | Min. 0.8 V(p-p) (DC Coupling *1) | |||||
|
Frequency/Temperature Characteristics |
Max. ±2.5×10–6 | |||||
| Operating Temperature Range (°C) | –30 to +75 | |||||
| Storage Temperature Range (°C) | –40 to +85 | |||||
| Frequency/Voltage Coefficient | Max. ±0.3×10–6/VCC±5 % | |||||
| Frequency/Load Coefficient | Max. ±0.2×10–6/(10 kΩ//10 pF) ±10 % | |||||
| Long-term Frequency Stability | Max. ±1.0×10–6/year | |||||
NT3225SA-19.2M-DJA3002B|19.2MHz|3225|TCXO|2.8V|
| NDK原厂编码 | 生产厂商 | 型号 | 频率 | 电压 | 尺寸 |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | 26MHz | 1.8V | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | 26MHz | 1.8V | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | 26MHz | 1.8V | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | 13MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | 13MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | 13MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
