ELM10-16.000MHz-8-R60-2-D20-T|16MHz|20PPM|8PF|-40~85℃|AEL，欧美进口AEL晶体，SMD石英晶体谐振器，公差： ±15ppm可用，工作温度0°C至+50°C至-40°C至+125°C，陶瓷SMD晶体，贴片晶振,2520晶振,汽车钥匙晶振,石英晶振,无源晶振,车载蓝牙设备晶振.
ELM10-16.000MHz-8-R60-2-D20-T|16MHz|20PPM|8PF|-40~85℃|AEL

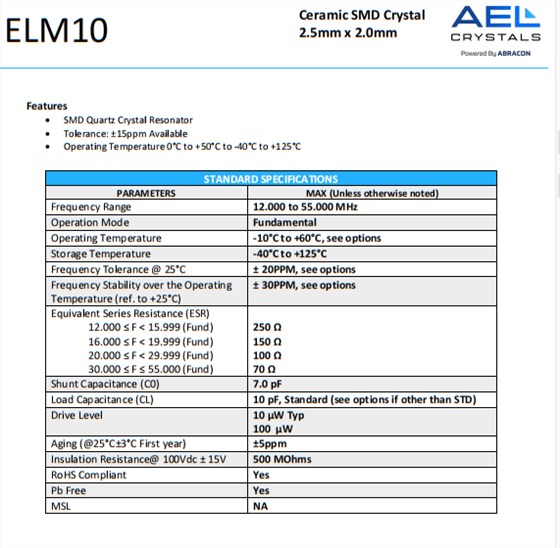

参数
MAX (Unless otherwise noted)
频率范围
12.000 to 55.000 MHz
工作模式
Fundamental
工作温度
-10°C to +60°C, see options
储存温度
-40°C to +125°C
频率容差+25℃
± 20PPM, see options
工作温度下的频率稳定性 (ref. to +25°C)
± 30PPM, see options
等效串联电阻 (ESR)
12.000 ≤ F < 15.999 (Fund)
16.000 ≤ F < 19.999 (Fund)
20.000 ≤ F < 29.999 (Fund)
30.000 ≤ F ≤ 55.000 (Fund)
250 欧姆
150欧姆
100 欧姆
70 欧姆
并联电容
7.0 pF
负载电容
10 pF, Standard (see options if other than STD)
驱动电平
10 μW Typ
100μW
老化
±5ppm
绝缘电阻
500 MOhms
通过无铅认证
Yes
无铅
Yes
MSL
NA
ELM10-16.000MHz-8-R60-2-D20-T|16MHz|20PPM|8PF|-40~85℃|AEL
| AEL原厂编码 | 生产商品牌 | 工作温度 | 频率 | 频率偏差度 | 频率容差 | 负载电容 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | -40°C ~ 105°C | 10 MHz | ±100ppm | ±50ppm | 20 pF |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | -10°C ~ 60°C | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | -10°C ~ 60°C | 13.56 MHz | ±30ppm | ±30ppm | 10 pF |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | -20°C ~ 70°C | 30 MHz | ±10ppm | ±10ppm | 10 pF |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | -10°C ~ 60°C | 4 MHz | ±50ppm | ±30ppm | 16 pF |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | -25°C ~ 75°C | 4 MHz | ±20ppm | ±10ppm | 16 pF |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | -40°C ~ 85°C | 4 MHz | ±50ppm | ±30ppm | 30 pF |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 16 pF |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | -40°C ~ 85°C | 16 MHz | ±20ppm | ±20ppm | 8 pF |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | -30°C ~ 85°C | 24 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | -40°C ~ 85°C | 32 MHz | ±20ppm | ±10ppm | 10 pF |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | -40°C ~ 85°C | 14 MHz | ±50ppm | ±50ppm | 30 pF |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | -20°C ~ 70°C | 8.057 MHz | ±30ppm | ±30ppm | 18 pF |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 10 pF |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | -10°C ~ 60°C | 12.5829 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | -20°C ~ 70°C | 14.8 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | -40°C ~ 85°C | 18.432 MHz | ±100ppm | ±100ppm | 16 pF |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | -40°C ~ 85°C | 24 MHz | ±25ppm | ±10ppm | 10 pF |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | -20°C ~ 70°C | 24 MHz | ±10ppm | ±10ppm | 18 pF |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | -30°C ~ 85°C | 24 MHz | ±10ppm | ±10ppm | 9 pF |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | -20°C ~ 70°C | 26 MHz | ±10ppm | ±10ppm | 18 pF |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | -20°C ~ 75°C | 32 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | -40°C ~ 85°C | 32 MHz | ±15ppm | ±10ppm | 9 pF |
| ELS07-32.768kHz-6-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 6 pF |
| ELS07-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS13-32.768kHz-7-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 7 pF |
| ELS13-32.768kHz-7-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 7 pF |
| ELS13-32.768kHz-9-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±-0.034ppm | ±20ppm | 9 pF |
| ELS13-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS13-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS25-32.768kHz-6-2-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±0.035ppm | ±20ppm | 6 pF |
| ELS25-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS25-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS06-32.768kHz-9-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| ELS05-32.768kHz-9-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | -40°C ~ 85°C | 24 MHz | ±20ppm | ±15ppm | 6 pF |
| X10M000000L121 | AEL晶振 | -20°C ~ 70°C | 10 MHz | ±50ppm | ±30ppm | 30 pF |
| X10M000000S065 | AEL晶振 | -40°C ~ 105°C | 10 MHz | ±100ppm | ±50ppm | 20 pF |
