AEL,ELLS-10.000MHz-20-R60-J-Q-F-T,49SMD,-40~105℃，欧美进口AEL晶振，SMD石英晶体谐振器，公差： ±10ppm可用，工作温度0°C至+70°C至-55°C至+125°C，陶瓷SMD晶体，49SMD晶振,贴片晶振,欧美高品质晶振,儿童学习用品晶振,石英晶振,无源晶振,蓝牙音箱晶振

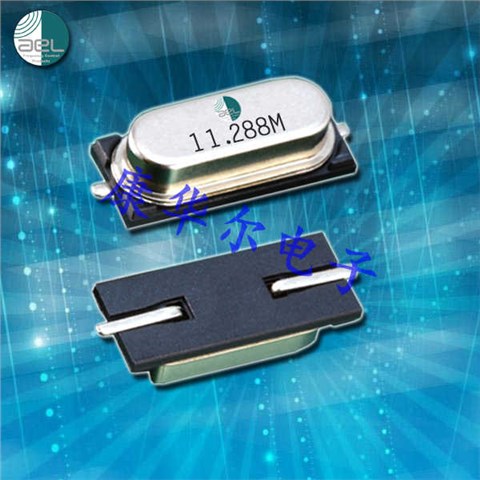

AEL,ELLS-10.000MHz-20-R60-J-Q-F-T,49SMD,-40~105℃
| 参数 | MAX (Unless otherwise noted) |
|
频率范围 基本AT（标准） 第三泛音（标准） 基本AT或BT（见选项） |
3.579545 to 24.000 MHz 24.01 to 75.00 MHz 24.01 to 50.00 MHz |
| 工作模式 | Fundamental or 3rdOvertone |
| 工作温度 | 0°C to +70°C, see options |
| 储存温度 | -55°C to +125°C |
| 频率容差+25℃ | ± 50PPM, see options |
| 工作温度下的频率稳定度(ref. to +25°C) |
± 50PPM, see options (For BT cut, ± 100ppm max.at-10° C to +60° C only) |
|
等效串联电阻 (ESR) 3.579545 ≤ F < 4.999 (Fund) 5.000 ≤ F < 5.999 (Fund) 6.000 ≤ F < 7.999 (Fund) 8.000 ≤ F < 8.999 (Fund) 9.000 ≤ F ≤ 9.999 (Fund) 10.000 ≤ F ≤ 15.999 (Fund) 16.000≤ F ≤ 50.000 (Fund) 24.01 ≤ F ≤ 31.999 (3rdO/T) 32.000≤ F ≤ 75.000 (3rdO/T) |
180 ? 120 ? 100 ? 80 ? 60 ? 50 ? 40 ? 100 ? 80 ? |
| 并联电容 | 7.0 pF |
| 负载电容 | 18 pF, Standard (see options if other than STD) |
| 驱动电平 |
100 μW Typ 1000μW |
| 老化(@25°C±3°C First year) | ±5ppm |
| 绝缘电阻@ 100Vdc ± 15V | 500 MOhms |
| 通过无铅认证 | Yes |
| 无铅 | Yes |
| MSL | N/A |
AEL,ELLS-10.000MHz-20-R60-J-Q-F-T,49SMD,-40~105℃
| AEL原厂编码 | 生产商品牌 | 工作温度 | 频率 | 频率偏差度 | 频率容差 | 负载电容 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | -40°C ~ 105°C | 10 MHz | ±100ppm | ±50ppm | 20 pF |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | -10°C ~ 60°C | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | -10°C ~ 60°C | 13.56 MHz | ±30ppm | ±30ppm | 10 pF |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | -20°C ~ 70°C | 30 MHz | ±10ppm | ±10ppm | 10 pF |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | -10°C ~ 60°C | 4 MHz | ±50ppm | ±30ppm | 16 pF |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | -25°C ~ 75°C | 4 MHz | ±20ppm | ±10ppm | 16 pF |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | -40°C ~ 85°C | 4 MHz | ±50ppm | ±30ppm | 30 pF |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 16 pF |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | -40°C ~ 85°C | 16 MHz | ±20ppm | ±20ppm | 8 pF |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | -30°C ~ 85°C | 24 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | -40°C ~ 85°C | 32 MHz | ±20ppm | ±10ppm | 10 pF |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | -40°C ~ 85°C | 14 MHz | ±50ppm | ±50ppm | 30 pF |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | -20°C ~ 70°C | 8.057 MHz | ±30ppm | ±30ppm | 18 pF |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | -40°C ~ 85°C | 12 MHz | ±30ppm | ±30ppm | 10 pF |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | -10°C ~ 60°C | 12.5829 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | -20°C ~ 70°C | 14.8 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | -40°C ~ 85°C | 18.432 MHz | ±100ppm | ±100ppm | 16 pF |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | -40°C ~ 85°C | 24 MHz | ±25ppm | ±10ppm | 10 pF |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | -20°C ~ 70°C | 24 MHz | ±10ppm | ±10ppm | 18 pF |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | -30°C ~ 85°C | 24 MHz | ±10ppm | ±10ppm | 9 pF |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | -20°C ~ 70°C | 26 MHz | ±10ppm | ±10ppm | 18 pF |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | -20°C ~ 75°C | 32 MHz | ±10ppm | ±10ppm | 16 pF |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | -40°C ~ 85°C | 32 MHz | ±15ppm | ±10ppm | 9 pF |
| ELS07-32.768kHz-6-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 6 pF |
| ELS07-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS13-32.768kHz-7-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 7 pF |
| ELS13-32.768kHz-7-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 7 pF |
| ELS13-32.768kHz-9-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±-0.034ppm | ±20ppm | 9 pF |
| ELS13-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS13-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS25-32.768kHz-6-2-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±0.035ppm | ±20ppm | 6 pF |
| ELS25-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS25-32.768kHz-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | 0 | ±20ppm | 12.5 pF |
| ELS06-32.768kHz-9-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| ELS05-32.768kHz-9-T | AEL晶振 | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 9 pF | |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | -40°C ~ 85°C | 24 MHz | ±20ppm | ±15ppm | 6 pF |
| X10M000000L121 | AEL晶振 | -20°C ~ 70°C | 10 MHz | ±50ppm | ±30ppm | 30 pF |
| X10M000000S065 | AEL晶振 | -40°C ~ 105°C | 10 MHz | ±100ppm | ±50ppm | 20 pF |
