ECX-71贴片晶体,ECS-.327-12.5-38-TR,ECS音叉晶体,6G可穿戴设备晶振，频率32.768KHZ，伊西斯无源晶体，32.768KHZ贴片晶振，7015mm无源晶振，32.768K晶振，时钟晶振，32.768K音叉晶体，无源贴片晶振，无源晶振，SMD晶振，欧美进口晶振，ECS无源晶体，可穿戴设备晶振，助听器专用晶振，电子产品专用晶振，工业应用晶振，高质量晶振，低损耗晶振，低成本晶振，低老化晶振，高性能晶振，具有超高的可靠性能。

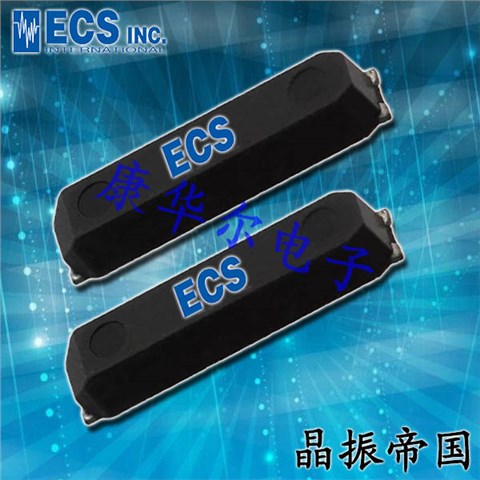

ECS Inc .以其32.768kHz音叉晶体而闻名，是频率控制行业中第一个提供世界上最小的SMD晶体的公司。开创性的器件是ECX-1210和ECX-1210B，提供1.2毫米x 1.0mm毫米的双焊盘和四焊盘封装。SMD音叉是可穿戴设备、药物输送设备和助听器的理想选择。ECX-71是一款紧凑型表面贴装32.768kHz音叉，采用7.0毫米x 1.5毫米x 1.4毫米封装。ECX-71在-40°C至+85°C的标准工业工作温度范围内提供65kΩ的ESR，推荐通过AN2867用于STM32。ECX-71贴片晶体,ECS-.327-12.5-38-TR,ECS音叉晶体,6G可穿戴设备晶振.

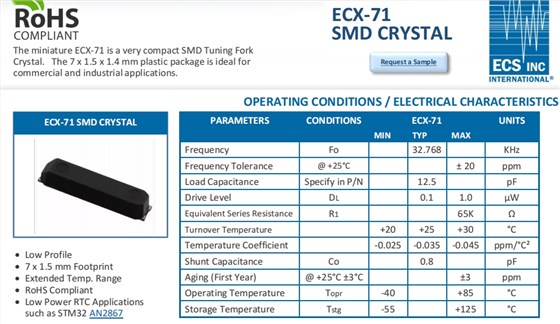

ECX-71贴片晶体,ECS-.327-12.5-38-TR,ECS音叉晶体,6G可穿戴设备晶振参数表
| PARAMETERS | CONDITIONS | ECX-71 | UNITS | |||||||||||||
| MIN | TYP | MAX | ||||||||||||||
| Frequency | Fo | 32.768 | KHz | |||||||||||||
| Frequency Tolerance | @ +25°C | ± 20 | ppm | |||||||||||||
| Load Capacitance | Specify in P/N | 12.5 | pF | |||||||||||||
| Drive Level | DL | 0.1 | 1.0 | μW | ||||||||||||
| Equivalent Series Resistance | R1 | 65K | Ω | |||||||||||||
| Turnover Temperature | +20 | +25 | +30 | °C | ||||||||||||
| Temperature Coefficient | -0.025 | -0.035 | -0.045 | ppm/°C² | ||||||||||||
| Shunt Capacitance | Co | 0.8 | pF | |||||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±3 | ppm | |||||||||||||
| Operating Temperature | Topr | -40 | +85 | °C | ||||||||||||
| Storage Temperature | Tstg | -55 | +125 | °C | ||||||||||||

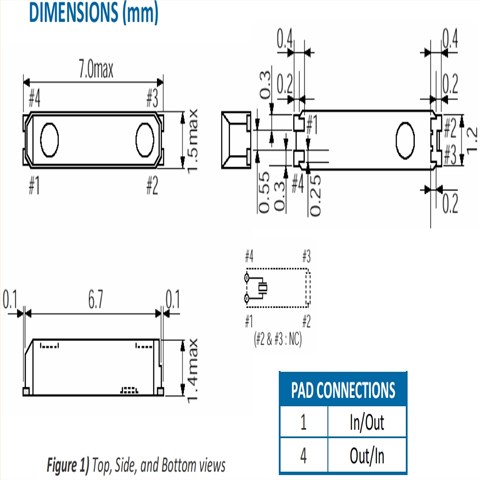

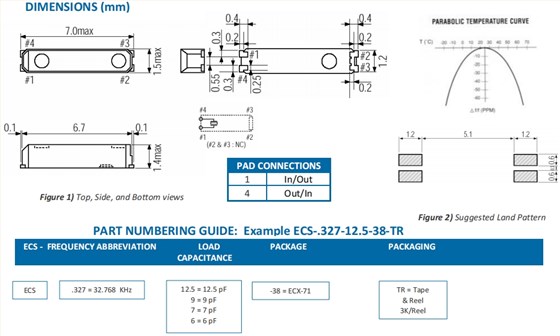

ECX-71贴片晶体,ECS-.327-12.5-38-TR,ECS音叉晶体,6G可穿戴设备晶振 尺寸图
无源晶振产品特性：
低轮廓
7x1.5mm足迹
扩展的温度范围
符合RoHS规范
低功率RTC应用程序
如STM32 AN2867
更多相关ECS晶振型号
| 原厂编码 | 厂家 | 型号 | 系列 | 频率 | 工作温度 |
| ECS-122.8-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12.288MHz | -10°C ~ 70°C |
| ECS-122.8-S-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 12.288MHz | -10°C ~ 70°C |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768K | -40°C ~ 85°C |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13X | ECS晶振 | ECS-2X6X | kHz Crystal (Tuning Fork) | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz | -10°C ~ 70°C |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz | -10°C ~ 70°C |
| ECS-200-18-5PX-TR | ECS晶振 | CSM-7X | MHz Crystal | 20MHz | -10°C ~ 70°C |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz | -20°C ~ 70°C |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz | -20°C ~ 70°C |
| ECS-80-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 8MHz | -20°C ~ 70°C |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz | -20°C ~ 70°C |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz | -20°C ~ 70°C |
| ECS-49-18-5PX-JEM-TR | ECS晶振 | CSM-7X | MHz Crystal | 4.9152MHz | -20°C ~ 70°C |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz | -40°C ~ 85°C |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz | -40°C ~ 85°C |
| ECS-35-17-5PXDN-TR | ECS晶振 | CSM-7X-DN | MHz Crystal | 3.579545MHz | -40°C ~ 85°C |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz | -40°C ~ 125°C |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz | -40°C ~ 125°C |
| ECS-120-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 12MHz | -40°C ~ 125°C |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz | -40°C ~ 125°C |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz | -40°C ~ 125°C |
| ECS-135.6-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 13.56MHz | -40°C ~ 125°C |
| ECS-147.4-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 14.7456MHz | -40°C ~ 125°C |
| ECS-147.4-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 14.7456MHz | -40°C ~ 125°C |
| ECS-147.4-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 14.7456MHz | -40°C ~ 125°C |
| ECS-160-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16MHz | -40°C ~ 125°C |
| ECS-160-12-33Q-JES-TR | 美国ECS晶振 | ECX-33Q | MHz Crystal | 16MHz | -40°C ~ 125°C |
| ECS-160-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16MHz | -40°C ~ 125°C |
| ECS-163.8-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16.384MHz | -40°C ~ 125°C |
| ECS-163.8-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16.384MHz | -40°C ~ 125°C |
| ECS-163.8-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 16.384MHz | -40°C ~ 125°C |
| ECS-184-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 18.432MHz | -40°C ~ 125°C |
| ECS-184-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 18.432MHz | -40°C ~ 125°C |
| ECS-184-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 18.432MHz | -40°C ~ 125°C |
| ECS-240-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 24MHz | -40°C ~ 125°C |
| ECS-240-12-33Q-JES-TR | ECS晶振 | ECX-33Q | MHz Crystal | 24MHz | -40°C ~ 125°C |
