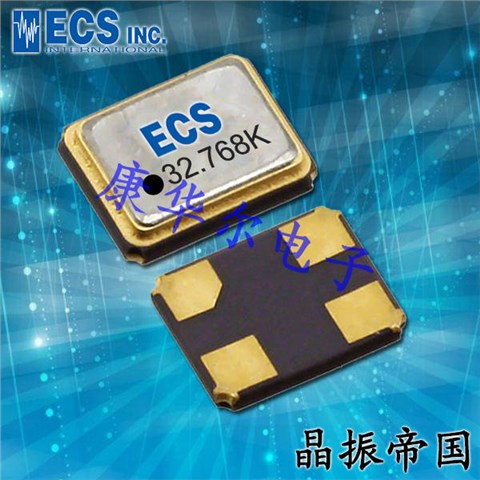

伊西斯进口晶振,6G网络晶振,ECX-64无源谐振器,ECS-320-18-23B-TR,尺寸为6.0x3.5mm，频率32MHZ，ECS石英晶振，欧美进口晶振，四脚贴片晶振，SMD石英晶体，石英SMD晶振，无源贴片晶振，贴片晶振，石英晶振，6035mm晶振，石英晶体谐振器，四脚贴片晶振，水晶振动子，环保晶振，6G网络晶振，仪器设备晶振，无线应用晶振，智能家居晶振，小型设备晶振，蓝牙音响晶振，高品质晶振，低损耗晶振，高性能石英晶振，产品具有低损耗高品质的特点。
ECX-64是一个微型SMD晶体，具有6 x 3.5毫米4垫足迹。这种成本效益高的包装高度1.1 mm是理想的密集的PCB应用，石英晶振产品很适合用于智能家居，蓝牙音响，网络设备，无线应用等领域。伊西斯进口晶振,6G网络晶振,ECX-64无源谐振器,ECS-320-18-23B-TR.

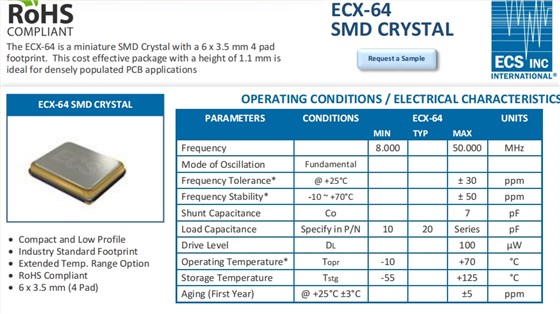

伊西斯进口晶振,6G网络晶振,ECX-64无源谐振器,ECS-320-18-23B-TR参数表
| PARAMETERS | CONDITIONS | ECX-64 | UNITS | ||||||||||||
| MIN | TYP | MAX | |||||||||||||
| Frequency |
|
32.000 |
|
MHz | |||||||||||
| Mode of Oscillation | Fundamental | ||||||||||||||
| Frequency Tolerance* | @ +25°C | ± 30 | ppm | ||||||||||||
| Frequency Stability* | -10 ~ +70°C | ± 50 | ppm | ||||||||||||
| Shunt Capacitance | Co | 7 | pF | ||||||||||||
| Load Capacitance | Specify in P/N | 10 | 20 | Series | pF | ||||||||||
| Drive Level | DL | 100 | μW | ||||||||||||
| Operating Temperature* | Topr | -10 | +70 | °C | |||||||||||
| Storage Temperature | Tstg | -55 | +125 | °C | |||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | ||||||||||||

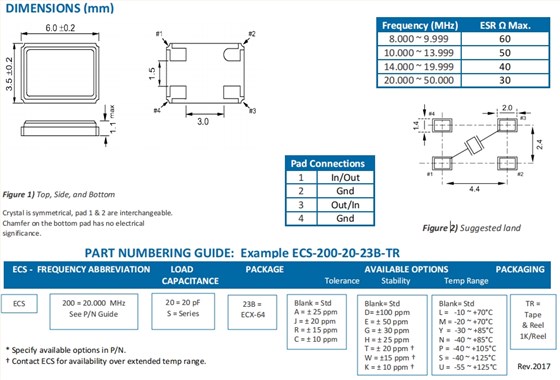

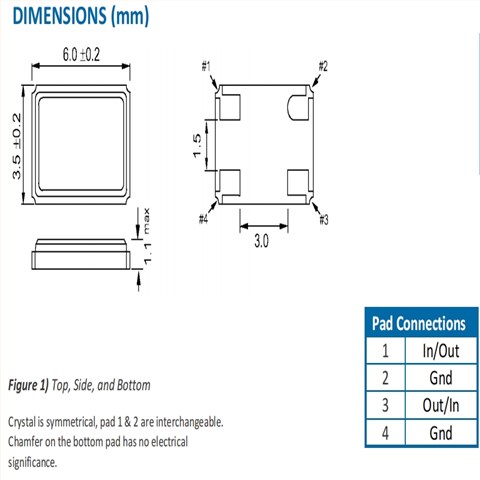

伊西斯进口晶振,6G网络晶振,ECX-64无源谐振器,ECS-320-18-23B-TR 尺寸图
石英晶体产品特性：
紧凑和低轮廓
行业标准足迹
扩展温度范围选项
RoHS兼容的
6x3.5mm（4垫）
