汽车音响控制器晶振应用编码X1G005171009300爱普生晶振SG-8101CGA
爱普生晶振具有出色的质量、良好的量产性和性价比,适用于可穿戴设备、通信模块等应用.在汽车电子方面开发的2520尺寸(2.5x2.0mm)车载用水晶振荡子系列符合汽车电器件可靠性测试标准AEC-Q200,爱普生晶振在-40～+125℃的温度范围内的温漂被控制在+/-35ppm之内,满足了汽车Ethernet等下一代车载LAN和图像处理器等对晶体的精度要求.目前这两款产品均已开始量产.

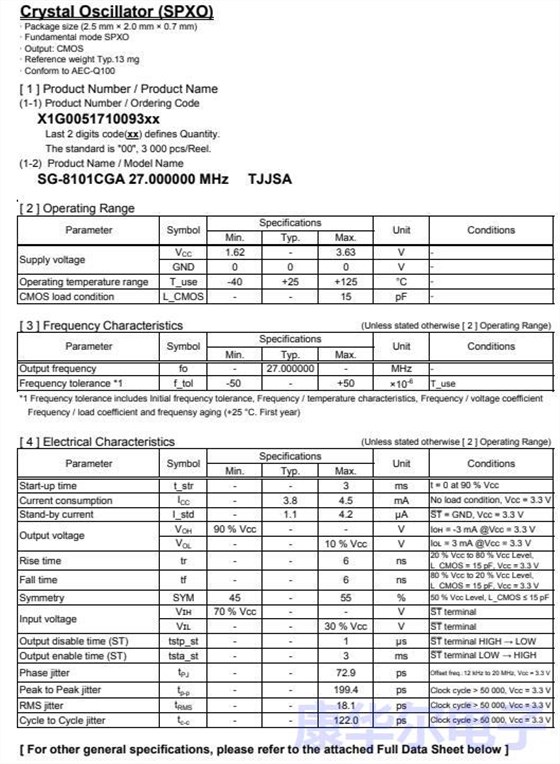

汽车音响控制器晶振,X1G005171009300爱普生晶振SG-8101CGA
| 爱普生有源晶振编码 | 型号 | 频率 | 长X宽X高 | 输出波 | 电源电压 | 工作温度 | 频差 | 最大值 |
| X1G005171007900 | SG-8101CGA | 135.700000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤8.2mA |
| X1G005171008000 | SG-8101CGA | 30.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to85°C | +/-15ppm | ≤4.5mA |
| X1G005171008100 | SG-8101CGA | 24.576000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤4.5mA |
| X1G005171008200 | SG-8101CGA | 150.200000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤8.2mA |
| X1G005171008300 | SG-8101CGA | 150.800000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤8.2mA |
| X1G005171008400 | SG-8101CGA | 1.843200MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤3.6mA |
| X1G005171008500 | SG-8101CGA | 47.684000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤4.5mA |
| X1G005171008600 | SG-8101CGA | 9.900000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤3.6mA |
| X1G005171008700 | SG-8101CGA | 19.200000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤3.6mA |
| X1G005171008800 | SG-8101CGA | 140.500000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤8.2mA |
| X1G005171008900 | SG-8101CGA | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to85°C | +/-15ppm | ≤3.6mA |
| X1G005171009100 | SG-8101CGA | 88.200000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤6.1mA |
| X1G005171009200 | SG-8101CGA | 33.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤4.5mA |
| X1G005171009300 | SG-8101CGA | 27.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤4.5mA |
| X1G005171009400 | SG-8101CGA | 89.600000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤6.1mA |
| X1G005171009500 | SG-8101CGA | 58.100000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤5.3mA |
| X1G005171009600 | SG-8101CGA | 89.400000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤6.1mA |
| X1G005171009700 | SG-8101CGA | 26.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤4.5mA |
| X1G005171009800 | SG-8101CGA | 22.579200MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤4.5mA |
| X1G005171009900 | SG-8101CGA | 19.200000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤3.6mA |
| X1G005171010000 | SG-8101CGA | 18.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤3.6mA |
| X1G005171010100 | SG-8101CGA | 29.291200MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤4.5mA |
| X1G005171010200 | SG-8101CGA | 136.400000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤8.2mA |
| X1G005171010300 | SG-8101CGA | 66.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to105°C | +/-20ppm | ≤5.3mA |
| X1G005171010400 | SG-8101CGA | 8.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620to3.630V | -40to125°C | +/-50ppm | ≤3.6mA |
