苹果手机蓝牙音响晶振SG-210SEBA爱普生有源晶振X1G004611A00500编码
蓝牙音箱炬芯ATS2835卓荣CW6690G伦茨科技AC8976A8
伦茨科技AC8976A8搭载ARMCortex-M032位单核处理器,具有8MB系统闪存,支持通用多协议SoC,Bluetooth5.1+BR+EDR+BLE协议.具有20段音效可调节,支持ANC主动降噪,支持MP2,MP3,WMA,APE,FLAC,AAC,MP4,M4A,WAV,AIF,AIFC音频格式,高度集成、高性价比、低功耗的BluetoothSoC.
卓荣CW6690G是一款HIFI高端蓝牙音频主控芯片.爱普生晶振内置高性能DSP和双模蓝牙,采用32bitRISCCPU+DSP灵活高效架构.集成了高保真HIFI品质全格式解码与立体声模拟数字转换电路,以及高性能音频数字处理能力.广泛适用于各种高端音频设备产品.
炬芯蓝牙音箱系列芯片ATS2835/支持蓝牙5.0双模（经典蓝牙/低功耗蓝牙）、app/apk、TWS、本地播放和多段PEQ和DRC等音效调节；部分产品支持AudioBroadcast、Multipoint、Hi-res、特殊音效调节和低延时模式.其中AudioBroadcast应用支持数百台音箱组合播放,距离可达几十米.低延时模式下蓝牙传输延时可以有效降低到50ms或更低.

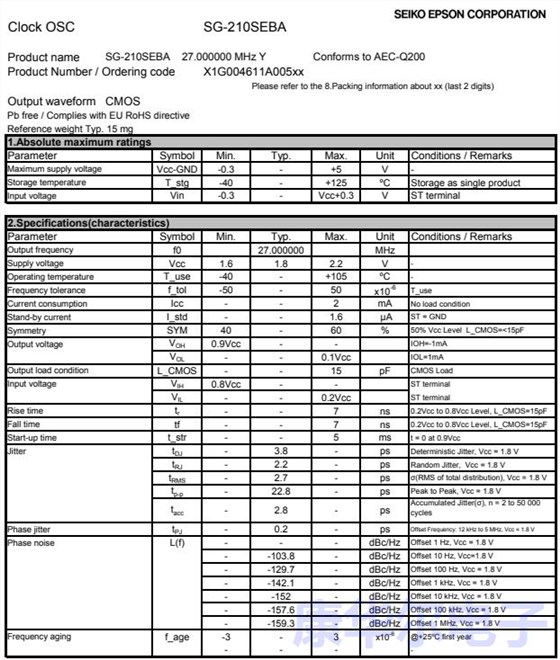

SG-210SEBA爱普生有源晶振X1G004611A00500编码,苹果手机蓝牙音响晶振
| 爱普生有源晶振编码 | 型号 | 频率 | 长X宽X高 | 输出波 | 电源电压 | 工作温度 | 频差 |
| X1G004611A00100 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-50ppm |
| X1G004611A00300 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to125°C | +/-100ppm |
| X1G004611A00400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to125°C | +/-100ppm |
| X1G004611A00500 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-50ppm |
| X1G004601A00500 | SG-210SDBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to125°C | +/-100ppm |
| X1G004601A00700 | SG-210SDBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to125°C | +/-100ppm |
| X1G004611A00100 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to+125°C | +/-100ppm |
| X1G004611A00300 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to+125°C | +/-100ppm |
| X1G004611A00400 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to+125°C | +/-100ppm |
| X1G004611A00500 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to+125°C | +/-100ppm |
| X1G004601A00500 | SG-210SDBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to+125°C | +/-100ppm |
| X1G004601A00700 | SG-210SDBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to+125°C | +/-100ppm |
| X1G004601A00500 | SG-210SDBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to125°C | +/-100ppm |
| X1G004601A00700 | SG-210SDBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to125°C | +/-100ppm |
| X1G004601A01100 | SG-210SDBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.200to3.000V | -40to105°C | +/-50ppm |
| X1G004611A00100 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-50ppm |
| X1G004611A00300 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to125°C | +/-100ppm |
| X1G004611A00400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to125°C | +/-100ppm |
| X1G004611A00500 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-50ppm |
| X1G004611A01200 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-100ppm |
| X1G004611A01300 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to85°C | +/-50ppm |
| X1G004611A01400 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to85°C | +/-50ppm |
| X1G004611A01600 | SG-210SEBA | 14.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-50ppm |
| X1G004611A01700 | SG-210SEBA | 37.125000MHz | 2.50x2.00x0.90mm | CMOS | 1.600to2.200V | -40to105°C | +/-50ppm |
据统计,2020年蓝牙电脑配件因为疫情原因而出货量大增,达到1.53亿,今年将达到1.68亿.
2021年,蓝牙遥控设备的出货量将达到2.42亿.日本进口晶振预计2025年,电视、风扇、音箱、相机等设备的原厂遥控器出货量将达到3.5亿,这将成为蓝牙数据传输应用领域出货量最大的设备类别.
蓝牙音箱数据传输蓝牙技术在物联网设备中的应用超过了所有其他技术,成为了物联网的首选技术.2021年将有130亿台蓝牙物联网设备投入使用.至2025年,蓝牙数据传输设备年出货量将增长1.7倍,达到14.6亿,5年复合增长率为11%.SG-210SEBA爱普生有源晶振X1G004611A00500编码,苹果手机蓝牙音响晶振
