EMRB62C-32.768K是一款2.5V的OSC有源晶振,用于测量测试设备

EMRB62C-32.768K是一款2.5V的OSC有源晶振,用于测量测试设备,Ecliptek晶振公司成立至今已有三十多年的发展历程，经过自身的不懈努力，如今获取的成就斐然，同时作为一名杰出的频率元器件制造商，所生产的产品与技术始终走在最前沿的位置，并且能够为用户提供性价比性能优越，成本低的有源晶振产品，并以高于用户需求为最大的目标。更令人满意的是Ecliptek公司高效率的服务，也因此有了服务是Ecliptek成功的基石的理念，考虑客户的合作伙伴，努力满足并超越他们对质量、客户服务和价值的要求。公司拥有专业的技术支持和全面的质量计划，使其成为行业最优秀的频率控制产品资源。

Part Number	Output Logic Type	Supply Voltage	Package Description	Frequency Stability	Operating Temperature Range	Duty Cycle	Aging
EB15K4H2H-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±50ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K4J2H-32.768K	CMOS	2.5Vdc	SMD 2.5mm x 3.2mm	±25ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K5C2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±100ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K5D2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±50ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K5E2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±25ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K5F2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±20ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K5G2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±100ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K5H2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±50ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K5J2H-32.768K	CMOS	2.5Vdc	SMD 3.2mm x 5.0mm	±25ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K7C2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±100ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K7D2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±50ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K7E2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±25ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K7F2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±20ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB15K7G2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±100ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K7H2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±50ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB15K7J2H-32.768K	CMOS	2.5Vdc	SMD 5.0mm x 7.0mm	±25ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB16K2C2H-32.768K	CMOS	1.8Vdc	SMD 2.0mm x 2.5mm	±100ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K2D2H-32.768K	CMOS	1.8Vdc	SMD振荡器 2.0mm x 2.5mm	±50ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K2E2H-32.768K	CMOS	1.8Vdc	SMD 2.0mm x 2.5mm	±25ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K2F2H-32.768K	CMOS	1.8Vdc	SMD 2.0mm x 2.5mm	±20ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K2G2H-32.768K	CMOS	1.8Vdc	SMD 2.0mm x 2.5mm	±100ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB16K2H2H-32.768K	CMOS	1.8Vdc	SMD 2.0mm x 2.5mm	±50ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB16K2J2H-32.768K	CMOS	1.8Vdc	SMD 2.0mm x 2.5mm	±25ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB16K4C2H-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±100ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K4D2H-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±50ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K4E2H-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±25ppm	0°C to +70°C	50 ±5(%)	±5ppm
EB16K4G2H-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±100ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB16K4H2H-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±50ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EB16K4J2H-32.768K	CMOS	1.8Vdc	SMD 2.5mm x 3.2mm	±25ppm	-40°C to +85°C	50 ±5(%)	±5ppm
EMRB61B-32.768K	CMOS	1.8Vdc	SMD 1.2mm x 2.0mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB61C-32.768K	CMOS	1.8Vdc	SMD 1.2mm x 2.0mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB62B-32.768K	CMOS	2.5Vdc	SMD 1.2mm x 2.0mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB62C-32.768K	CMOS	2.5Vdc	SMD 1.2mm x 2.0mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB63B-32.768K	CMOS	3.3Vdc	SMD 1.2mm x 2.0mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB63C-32.768K	CMOS	3.3Vdc	SMD 1.2mm x 2.0mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB64B-32.768K	CMOS	2.8Vdc	SMD 1.2mm x 2.0mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB64C-32.768K	CMOS	2.8Vdc	SMD 1.2mm x 2.0mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB65B-32.768K	CMOS	3.0Vdc	SMD 1.2mm x 2.0mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB65C-32.768K	CMOS	3.0Vdc	SMD 1.2mm x 2.0mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB81B-32.768K	CMOS	1.8Vdc	CSP 0.8mm x 1.5mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB81C-32.768K	CMOS	1.8Vdc	CSP 0.8mm x 1.5mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB82B-32.768K	CMOS	2.5Vdc	CSP 0.8mm x 1.5mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB82C-32.768K	CMOS	2.5Vdc	CSP 0.8mm x 1.5mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB83B-32.768K	CMOS	3.3Vdc	CSP 0.8mm x 1.5mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB83C-32.768K	CMOS	3.3Vdc	CSP 0.8mm x 1.5mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB84B-32.768K	CMOS	2.8Vdc	CSP 0.8mm x 1.5mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB84C-32.768K	CMOS	2.8Vdc	CSP 0.8mm x 1.5mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm
EMRB85B-32.768K	CMOS	3.0Vdc	CSP 0.8mm x 1.5mm	±75ppm	-10°C to +70°C	50 ±2(%)	±1ppm
EMRB85C-32.768K	CMOS	3.0Vdc	CSP 0.8mm x 1.5mm	±100ppm	-40°C to +85°C	50 ±2(%)	±1ppm

EMRB62C-32.768K是一款2.5V的OSC有源晶振,用于测量测试设备,Ecliptek公司的伟大目标是通过提供无与伦比的OSC贴片晶振产品，客户服务和对客户、员工和供应商的长期承诺，稳步发展。为确保这一使命的成功，超过公司的总裁和质量部创造了一个质量改进手册。这份基于ISO 9001的文件陈述了超过了任务的任务，以确保任务声明的持续履行。本公司质量改进手册的一个基本原则是:黄道质量方针。

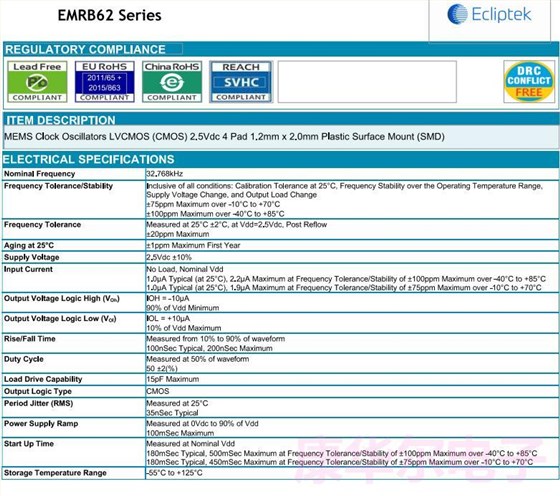

EMRB62C-32.768K是一款尺寸为2012mm的有源晶体振荡器，32.768KHZ晶振，XO时钟振荡器，32.768 kHz ，输出LVCMOS ，电压 2.5V，脚位4-SMD，产品具备超高的可靠性能和耐压性能，十分适合用于无线设备，物联网，仪器仪表等领域.
