爱普生有源振荡器,X1G0052210055,SG3225EEN差分晶振,6G物联网晶振

频率：150MHZ

尺寸：3.20x2.50x1.20mm

爱普生有源振荡器,X1G0052210055,SG3225EEN差分晶振,6G物联网晶振，尺寸为3.20x2.50x1.20mm，频率为150MHZ，输出逻辑LV-PECL，EPSON差分晶振，日本进口差分晶振，LV-PECL输出晶振，LV-PECL差分晶体振荡器，低功耗差分晶振，低抖动差分振荡器，6G网络差分晶振，通信设备差分振荡器，光模块差分晶振，测试测量专用差分晶振，产品具有低抖动低电压的特点,非常适合用于网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等领域。

6G将使通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率实现用于通信设备的低抖动参考时钟。使用上面的XO石英晶体振荡器，客户可以输入一个高频率参考(高达500mhz)与极低的相位抖动和功率，从一个基本模式晶体实现极好的相位噪声。爱普生有源振荡器,X1G0052210055,SG3225EEN差分晶振,6G物联网晶振.

订购热线：0755-27838351

爱普生有源振荡器,X1G0052210055,SG3225EEN差分晶振,6G物联网晶振 参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.5

fo ≤ 200 MHz

-0.5

fo > 200 MHz

Input voltage

Vin

-0.5

VCC + 0.5

OE terminal

Storage temperature range

T_stg

-55

125

ºC

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

ºC

Suffix: G

-40

+25

+105

ºC

Suffix: H

ECL load condition

L_ECL

Terminated to VCC - 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

150

MHz

SG3225EEN / SG7050EEN

200

500

MHz

SG5032EEN

Frequency tolerance

f_tol

-25

+25

×10-6

*2
Suffix: D
fo ≤ 200 MHz, T_use: G

-50

+50

×10-6

*3
Suffix: J
T_use: G

*3
Suffix: J
fo ≤ 200 MHz, T_use: H

-100

+100

×10-6

*3
Suffix: L
T_use: H

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 %VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	25	mA	OE = GND
Rise time / Fall time	tr / tf	-	-	0.3	ns	VCC = 3.3 V ± 10 %, fo ≤ 200 MHz, 20 % - 80 % (VOH - VOL)
		-	-	0.35	ns	All other, 20 % - 80 % (VOH - VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC - 1.1	-	-	V	DC characteristics
	VOL	-	-	VCC - 1.5	V
Input voltage	VIH	70 % VCC	-	-	V	OE terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	OE terminal HIGH → LOW
Output enable time (OE)	tsta_oe	-	-	200	ns	fo ≤ 200 MHz, OE terminal LOW → HIGH
		-	-	500	ns	fo > 200 MHz, OE terminal LOW → HIGH
Phase jitter (fo = 25 MHz)	tPJ	-	-	250	fs	Offset frequency 12 kHz to 5 MHz
Phase jitter (fo = 50 MHz)	tPJ	-	-	250	fs	Offset frequency 12 kHz to 20 MHz
Phase jitter (fo = 100 MHz)	tPJ	-	-	100	fs
Phase jitter (fo = 125 MHz)	tPJ	-	-	90	fs
Phase jitter (fo = 156.25 MHz)	tPJ	-	-	70	fs
Phase jitter (fo = 212.5 MHz)	tPJ	-	-	60	fs
Phase jitter (fo = 312.5 MHz)	tPJ	-	-	60	fs
Phase jitter (fo = 491.52 MHz)	tPJ	-	-	40	fs

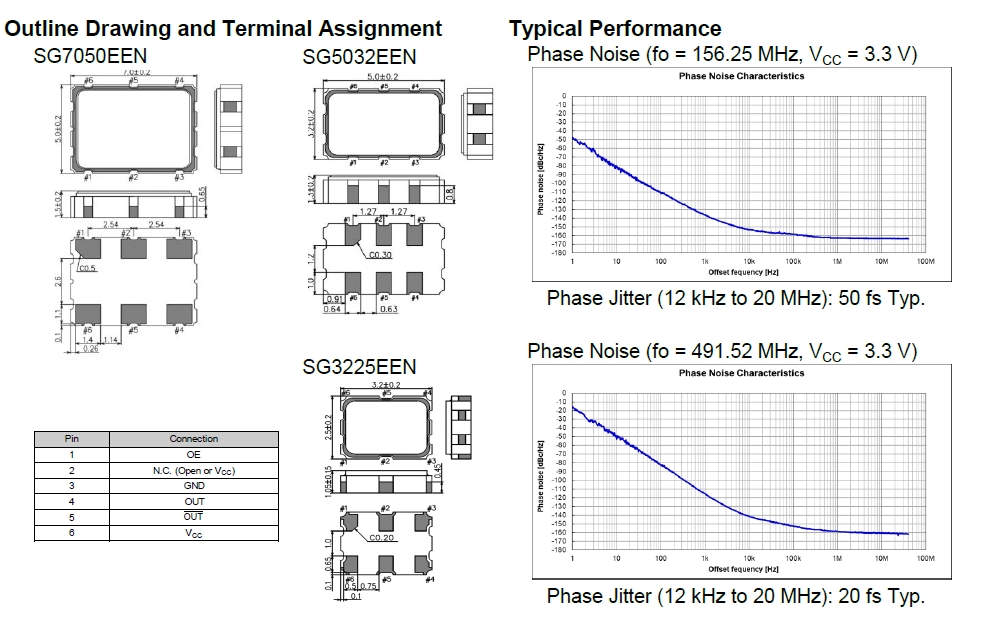

爱普生有源振荡器,X1G0052210055,SG3225EEN差分晶振,6G物联网晶振 尺寸图

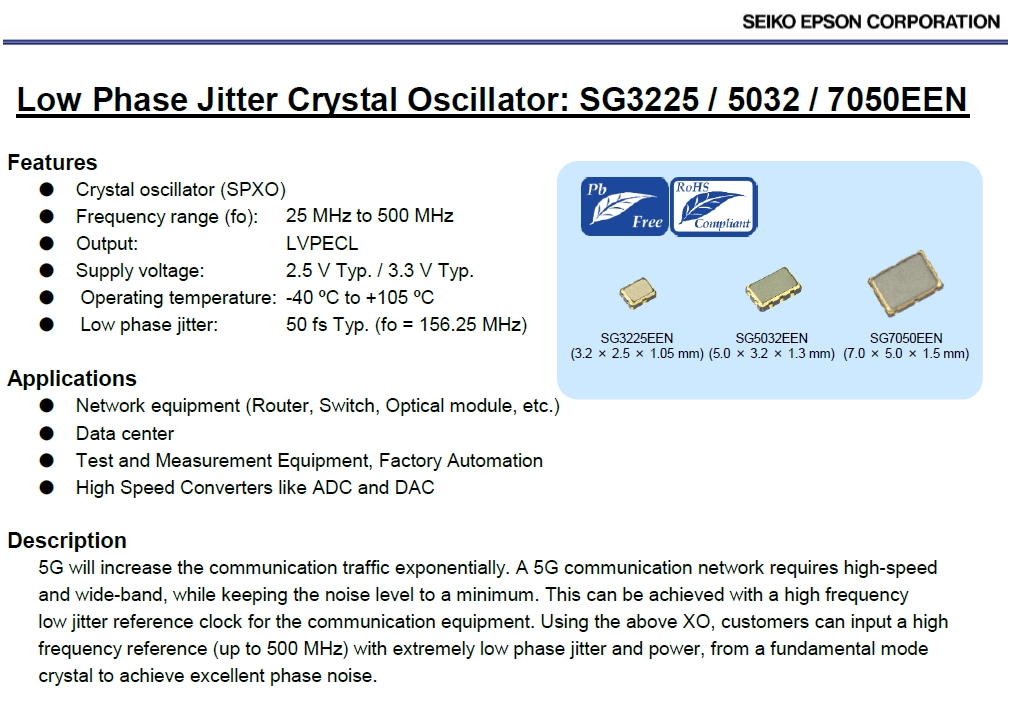

产品特性：

有源晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVPECL

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃至+105℃

低相位抖动:50fs(fo = 156.25 MHz)

更多相关的日本爱普生EPSON晶振型号
