爱普生石英差分振荡器SG-8503CA,6G通信晶振,X1G0050111001

频率：100MHZ

尺寸：7.0*5.0mm

爱普生石英差分振荡器SG-8503CA,6G通信晶振,X1G0050111001，尺寸为7.0*5.0mm,频率为100MHZ,输出逻辑LV-PECL，LV-PECL差分石英晶体振荡器，爱普生差分晶振，轻薄型差分晶振，EPSON低电压差分振荡器，有源差分晶体振荡器，低抖动差分晶振，低耗能差分振荡器，低相位差分晶振，进口LV-PECL差分晶振，100MHZ差分晶振，通信专用差分晶振，6G蓝牙模块差分晶振，差分晶振光通信输出，7050mm差分振荡器，高频差分晶振，测试测量差分晶振。

差分输出晶振产品非常适合应用于6G蓝牙模块，网络设备，智能家居，无线设备，光模块，以及OTN, BTS，测试仪器等领域。爱普生石英差分振荡器SG-8503CA,6G通信晶振,X1G0050111001.

订购热线：0755-27838351

差分输出晶振产品非常适合应用于6G蓝牙模块，网络设备，智能家居，无线设备，光模块，以及OTN, BTS，测试仪器等领域。爱普生石英差分振荡器SG-8503CA,6G通信晶振,X1G0050111001.爱普生石英差分振荡器SG-8503CA,6G通信晶振,X1G0050111001 参数表

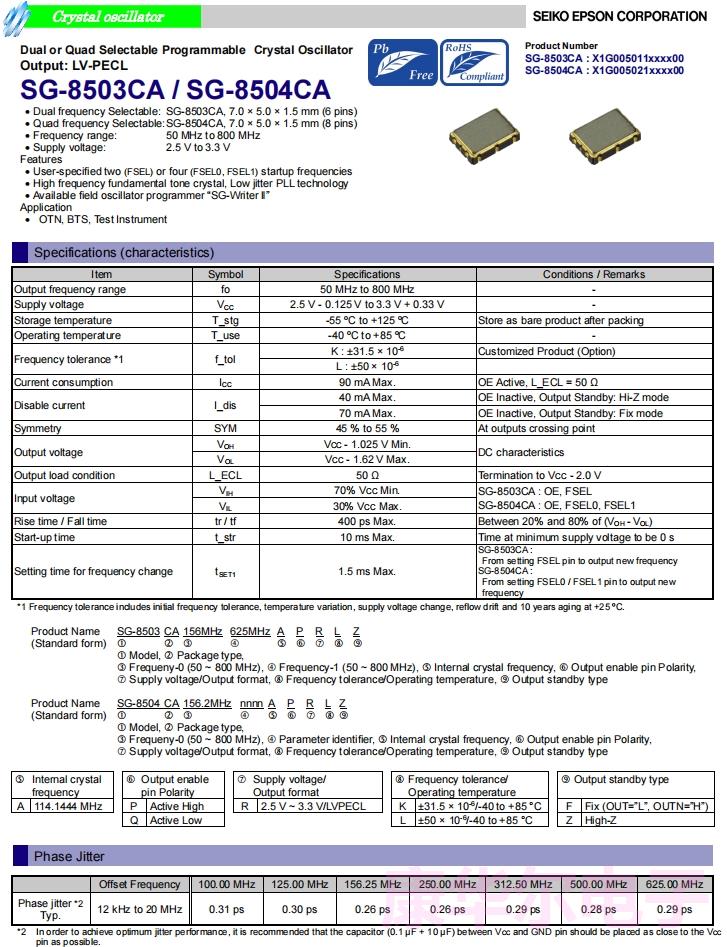

Specifications (characteristics)

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

100 MHz

Supply voltage

VCC

2.5 V - 0.125 V to 3.3 V + 0.33 V

Storage temperature

T_stg

-55 ºC to +125 ºC

Store as bare product after packing

Operating temperature

T_use

-40 ºC to +85 ºC

Frequency tolerance *1

f_tol

K : ±31.5 × 10-6

Customized Product (Option)

L : ±50 × 10-6

Current consumption

ICC

90 mA Max.

OE Active, L_ECL = 50 Ω

Disable current

I_dis

40 mA Max.

OE Inactive, Output Standby: Hi-Z mode

70 mA Max.

OE Inactive, Output Standby: Fix mode

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage

VOH

VCC - 1.025 V Min.

DC characteristics

VOL

VCC - 1.62 V Max.

Output load condition

L_ECL

50 Ω

Termination to VCC - 2.0 V

Input voltage

VIH

70% VCC Min.

SG-8503CA : OE, FSEL
SG-8504CA : OE, FSEL0, FSEL1

VIL

30% VCC Max.

Rise time / Fall time

tr / tf

400 ps Max.

Between 20% and 80% of (VOH - VOL)

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Setting time for frequency change

tSET1

1.5 ms Max.

SG-8503CA :
From setting FSEL pin to output new frequency
SG-8504CA :
From setting FSEL0 / FSEL1 pin to output new
frequency

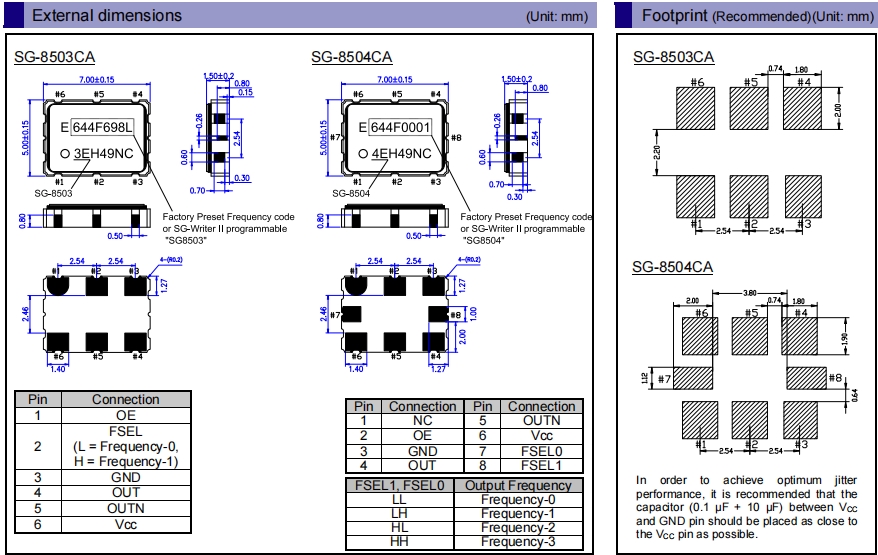

爱普生石英差分振荡器SG-8503CA,6G通信晶振,X1G0050111001 尺寸图

SMD振荡器产品特性：

双频可选:SG-8503CA, 7.0 × 5.0 × 1.5 mm(6引脚)

四频可选:SG-8504CA, 7.0 × 5.0 × 1.5 mm(8引脚)

频率范围:50mhz ~ 800mhz

电源电压:2.5 V至3.3 V

用户指定两个(FSEL)或四个(FSEL0, FSEL1)启动频率

高频基频晶体，低抖动锁相环技术

可用的场振荡器编程器“SG-Writer _”
