F62700016-F6-6035mm-手持电子产品-27MHZ-Diodes
频率:27MHZ

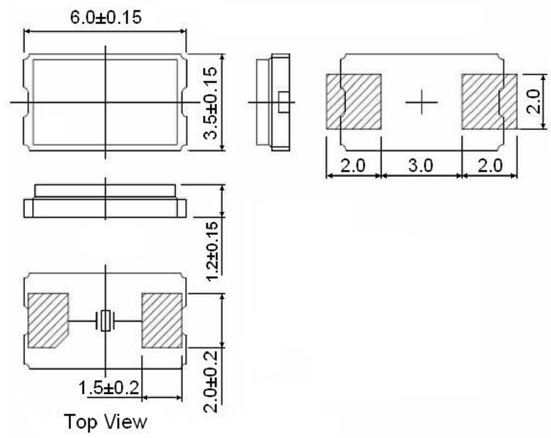

尺寸:6.0*3.5mm
F62700016-F6-6035mm-手持电子产品-27MHZ-Diodes,尺寸为6035mm,频率为27MHZ,Diodes晶振,百利通亚陶晶振,陶瓷晶振,两脚贴片晶振,无源晶体,SMD晶振,SMD晶体谐振器,高质量晶振,6035mm无源晶体,手持电子产品专用晶振,磁盘驱动器晶振,电子数码晶振,平板电脑晶振,娱乐游戏晶振,无线网络晶振,蓝牙耳机晶振。
2垫F6系列玻璃密封和4垫FX系列接缝密封装置包含一个小型切割带晶体结构,封装在6.0 x 3.5mm的封装范围内。这些协议可用于在密集的PCB应用中的表面安装。SMD晶振产品非常适合磁盘驱动器,PCMCIA, pc和手持电子产品等领域。F62700016-F6-6035mm-手持电子产品-27MHZ-Diodes.
F62700016-F6-6035mm-手持电子产品-27MHZ-Diodes,尺寸为6035mm,频率为27MHZ,Diodes晶振,百利通亚陶晶振,陶瓷晶振,两脚贴片晶振,无源晶体,SMD晶振,SMD晶体谐振器,高质量晶振,6035mm无源晶体,手持电子产品专用晶振,磁盘驱动器晶振,电子数码晶振,平板电脑晶振,娱乐游戏晶振,无线网络晶振,蓝牙耳机晶振。
2垫F6系列玻璃密封和4垫FX系列接缝密封装置包含一个小型切割带晶体结构,封装在6.0 x 3.5mm的封装范围内。这些协议可用于在密集的PCB应用中的表面安装。SMD晶振产品非常适合磁盘驱动器,PCMCIA, pc和手持电子产品等领域。F62700016-F6-6035mm-手持电子产品-27MHZ-Diodes.F62700016-F6-6035mm-手持电子产品-27MHZ-Diodes 参数表
Frequency Range: |
• 6.0000 MHz to 56.0000 MHz (Fundamental) |
• 30.0000 MHz to 125.0000 MHz (3rd Overtone) |
Characteristics at 25°C ±3°C: |
• Frequency Calibration: ±10ppm, ±20ppm, or ±30ppm |
• Load Capacitance: 8 to 32pF or Series Resonance |
• Effective Series Resistance (ESR): |
Fundamental: 20Ω to 80Ω max depending on frequency |
3rd Overtone: 60Ω to 80Ω max depending on frequency |
• Drive Level: 10μW typ. (100μW max) |
Shunt Capacitance: 5pF max |
Temperature Range: |
• Operating: –20 to +70°C or -40 to +85°C |
• Storage: –55 to +125°C |
Temperature Tolerance: |
• ±10ppm, ±20ppm, ±30ppm, or ±50ppm (–20 to +70°C) |
• ±30ppm, or ±50ppm (–40 to +85°C) |
Aging at 25°C, First Year: |
• ±3ppm Max |
产品特性:
•严格的公差和稳定性
•坚固的结构和优秀的
机械抗震性
•非常紧凑的SMD封装
•可在磁带和卷轴;12毫米磁带,
每卷1000支
•FX:无铅,符合RoHS/绿色标准
•F6:符合RoHS标准更多相关百利通亚陶晶振型号
原厂编码 | 厂家 | 型号 | 频率 | 频率稳定度 |
FQ2400005 | Diodes晶振 | SaRonix-eCera™ FQ | 24MHz | ±30ppm |
FH1200004 | Diodes晶振 | SaRonix-eCera™ FH | 12MHz | ±15ppm |
FH3000007 | Diodes晶振 | SaRonix-eCera™ FH | 30MHz | ±30ppm |
FH4000047 | Diodes晶振 | SaRonix-eCera™ FH | 40MHz | ±10ppm |
F90800018Q | Diodes晶振 | SaRonix-eCera™ F9 | 8MHz | ±50ppm |
FQ2500016 | Diodes晶振 | SaRonix-eCera™ FQ | 25MHz | ±20ppm |
FQ1200007 | Diodes晶振 | SaRonix-eCera™ FQ | 12MHz | ±30ppm |
FP0800056Z | Diodes晶振 | SaRonix-eCera™ FP | 8MHz | ±30ppm |
FH1840004 | Diodes晶振 | SaRonix-eCera™ FH | 18.432MHz | ±30ppm |
FH4800014 | Diodes晶振 | SaRonix-eCera™ FH | 48MHz | ±10ppm |
FH1200001 | Diodes晶振 | SaRonix-eCera™ FH | 12MHz | ±30ppm |
FH4000039 | Diodes晶振 | SaRonix-eCera™ FH | 40MHz | ±10ppm |
FH3200011 | Diodes晶振 | SaRonix-eCera™ FH | 32MHz | ±10ppm |
FH2400049 | Diodes晶振 | SaRonix-eCera™ FH | 24MHz | ±30ppm |
FH2600022 | Diodes晶振 | SaRonix-eCera™ FH | 26MHz | ±10ppm |
FH1600011 | Diodes晶振 | SaRonix-eCera™ FH | 16MHz | ±10ppm |
FH2400015 | Diodes晶振 | SaRonix-eCera™ FH | 24MHz | ±25ppm |
FH3840024Z | Diodes晶振 | SaRonix-eCera™ FH | 38.4MHz | ±10ppm |
FH3740013Z | Diodes晶振 | SaRonix-eCera™ FH | 37.4MHz | ±10ppm |
FH3200025 | Diodes晶振 | SaRonix-eCera™ FH | 32MHz | ±10ppm |
F92400054 | Diodes晶振 | SaRonix-eCera™ F9 | 24MHz | ±30ppm |
F92500042 | Diodes晶振 | SaRonix-eCera™ F9 | 25MHz | ±50ppm |
F61200046 | Diodes台湾晶振品牌 | SaRonix-eCera™ F6 | 12MHz | ±30ppm |
F90800021 | Diodes晶振 | SaRonix-eCera™ F9 | 8MHz | ±30ppm |
F91200084 | Diodes晶振 | SaRonix-eCera™ F9 | 12MHz | ±30ppm |
F62500047 | Diodes晶振 | SaRonix-eCera™ F6 | 25MHz | ±30ppm |
F60800010 | Diodes晶振 | SaRonix-eCera™ F6 | 8MHz | ±30ppm |
F62400017 | Diodes晶振 | SaRonix-eCera™ F6 | 24MHz | ±30ppm |
F61600023 | Diodes晶振 | SaRonix-eCera™ F6 | 16MHz | ±30ppm |
F62700016 | Diodes晶振 | SaRonix-eCera™ F6 | 27MHz | ±50ppm |
FP0800018 | Diodes晶振 | SaRonix-eCera™ FP | 8MHz | ±50ppm |
FH1600015 | Diodes晶振 | SaRonix-eCera™ FH | 16MHz | ±10ppm |
FH4800020Z | Diodes晶振 | SaRonix-eCera™ FH | 48MHz | ±10ppm |
FH2700019Z | Diodes晶振 | SaRonix-eCera™ FH | 27MHz | ±10ppm |
FH4000074Z | Diodes晶振 | SaRonix-eCera™ FH | 40MHz | ±10ppm |
FH1220003Z | Diodes晶振 | SaRonix-eCera™ FH | 12.2MHz | ±20ppm |
FP0730017Z | Diodes晶振 | SaRonix-eCera™ FP | 7.3728MHz | ±30ppm |
