FN系列3.3V时钟振荡器FN2000118,具备广泛的稳定性能和耐压性能,ECERA品牌

FN系列3.3V时钟振荡器FN2000118,具备广泛的稳定性能和耐压性能,ECERA品牌，Diodes公司（纳斯达克股票代码：DIOD）是一家极其具有影响力的知名晶振品牌公司,主要向全球提供高品质,低抖动的有源晶体振荡器,温补晶振等元件器,由于产品的性能卓越,深得广大用户的欢迎,亚陶公司的产品一直畅销于晶体产品的排行榜,通过长时间积累宣布推出符合汽车标准的ZXTP56060FDBQ和ZXTP56020FDBQ双PNP晶体管。这些新产品为OEM提供了一种用于控制矩阵 LED 灯组的高效解决方案。

FN0100007	Diodes晶振	SaRonix-eCera™ FN	1MHz	±50ppm	-40°C ~ 85°C
FN0180035	Diodes晶振	SaRonix-eCera™ FN	1.843MHz	±50ppm	-20°C ~ 70°C
FN0180036	Diodes晶振	SaRonix-eCera™ FN	1.843MHz	±25ppm	-20°C ~ 70°C
FN0180037	Diodes晶振	SaRonix-eCera™ FN	1.843MHz	±50ppm	-40°C ~ 85°C
FN0200043	Diodes晶振	SaRonix-eCera™ FN	2.048MHz	±25ppm	-20°C ~ 70°C
FN0200044	Diodes晶振	SaRonix-eCera™ FN	2.048MHz	±50ppm	-40°C ~ 85°C
FN0200046	Diodes晶振	SaRonix-eCera™ FN	2MHz	±50ppm	-20°C ~ 70°C
FN0230001	Diodes晶振	SaRonix-eCera™ FN	2.34MHz	±50ppm	-20°C ~ 70°C
FN0360036	Diodes晶振	SaRonix-eCera™ FN	3.686MHz	±50ppm	-40°C ~ 85°C
FN0360038	Diodes晶振	SaRonix-eCera™ FN	3.686MHz	±50ppm	-20°C ~ 70°C
FN0400060	Diodes晶振	SaRonix-eCera™ FN	4.096MHz	±50ppm	-20°C ~ 70°C
FN0400061	Diodes晶振	SaRonix-eCera™ FN	4MHz	±25ppm	-20°C ~ 70°C
FN0400062	Diodes晶振	SaRonix-eCera™ FN	4MHz	±50ppm	-20°C ~ 70°C
FN0400063	Diodes晶振	SaRonix-eCera™ FN	4MHz	±50ppm	-40°C ~ 85°C
FN0600010	Diodes晶振	SaRonix-eCera™ FN	6MHz	±50ppm	-40°C ~ 85°C
FN0600011	Diodes晶振	SaRonix-eCera™ FN	6MHz	±50ppm	-20°C ~ 70°C
FN0640004	Diodes晶振	SaRonix-eCera™ FN	6.4MHz	±50ppm	-40°C ~ 85°C
FN0670003	Diodes晶振	SaRonix-eCera™ FN	6.758MHz	±25ppm	-20°C ~ 70°C
FN0800032	Diodes晶振	SaRonix-eCera™ FN	8MHz	±50ppm	-40°C ~ 85°C
FN0810016	Diodes晶振	SaRonix-eCera™ FN	8.192MHz	±50ppm	-20°C ~ 70°C
FN0810017	Diodes晶振	SaRonix-eCera™ FN	8.192MHz	±25ppm	-20°C ~ 70°C
FN0810018	Diodes晶振	SaRonix-eCera™ FN	8.192MHz	±50ppm	-40°C ~ 85°C
FN0810019	Diodes晶振	SaRonix-eCera™ FN	8.192MHz	±25ppm	-20°C ~ 70°C

Diodes晶振公司的汽车行业正在转向自适应LED前照灯，并迅速采用基于LED技术的动态转向信号灯。这一举措正在创造对密集和高度功率优化晶体管的需求，用于在矩阵照明和扫描指示器应用中分流LED。ZXTP56060FDBQ 和 ZXTP56020FDBQ 通过用于控制 LED 灯串的优化解决方案满足了这一需求。FN系列3.3V时钟振荡器FN2000118,具备广泛的稳定性能和耐压性能,ECERA品牌

FN0810020	Diodes晶振	SaRonix-eCera™ FN	8.192MHz	±25ppm	-20°C ~ 70°C
FN1000055	Diodes晶振	SaRonix-eCera™ FN	10MHz	±50ppm	-20°C ~ 70°C
FN1000057	Diodes晶振	SaRonix-eCera™ FN	10MHz	±50ppm	-40°C ~ 85°C
FN1000058	Diodes晶振	SaRonix-eCera™ FN	10MHz	±25ppm	-20°C ~ 70°C
FN1100025	Diodes晶振	SaRonix-eCera™ FN	11.059MHz	±50ppm	-40°C ~ 85°C
FN1100027	Diodes晶振	SaRonix-eCera™ FN	11.059MHz	±50ppm	-20°C ~ 70°C
FN1200037	Diodes晶振	SaRonix-eCera™ FN	12MHz	±50ppm	-20°C ~ 70°C
FN1200038	Diodes晶振	SaRonix-eCera™ FN	12MHz	±25ppm	-20°C ~ 70°C
FN1200041	Diodes晶振	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1220024	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±50ppm	-20°C ~ 70°C
FN1220026	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±25ppm	-20°C ~ 70°C
FN1280007	Diodes晶振	SaRonix-eCera™ FN	12.8MHz	±25ppm	-20°C ~ 70°C
FN1320001	Diodes晶振	SaRonix-eCera™ FN	13.288MHz	±25ppm	-20°C ~ 70°C
FN1430047	Diodes晶振	SaRonix-eCera™ FN	14.318MHz	±50ppm	-20°C ~ 70°C
FN1430048	Diodes晶振	SaRonix-eCera™ FN	14.3181MHz	±25ppm	-20°C ~ 70°C
FN1430049	Diodes晶振	SaRonix-eCera™ FN	14.3181MHz	±50ppm	-40°C ~ 85°C
FN1430050	Diodes晶振	SaRonix-eCera™ FN	14.318MHz	±50ppm	-20°C ~ 70°C
FN1470033	Diodes晶振	SaRonix-eCera™ FN	14.746MHz	±50ppm	-20°C ~ 70°C
FN1470034	Diodes晶振	SaRonix-eCera™ FN	14.746MHz	±25ppm	-20°C ~ 70°C
FN1470035	Diodes晶振	SaRonix-eCera™ FN	14.746MHz	±50ppm	-40°C ~ 85°C
FN1500008	Diodes晶振	SaRonix-eCera™ FN	15MHz	±50ppm	-40°C ~ 85°C
FN1600044	Diodes晶振	SaRonix-eCera™ FN	16MHz	±25ppm	-20°C ~ 70°C
FN1600045	Diodes晶振	SaRonix-eCera™ FN	16MHz	±50ppm	-40°C ~ 85°C

这些SMD振荡器器件完全符合 AEC-Q101标准，具有极低的 V CE(SAT)，可提供60V (ZXTP56060FDBQ) 或 20V (ZXTP56020FDBQ) 击穿电压，同时提供 2A 的连续集电极电流。ZXTP56020FDBQ 在 700mA 的 LED 电流下具有 200mV的最大 V CE(SAT)，可最大限度地降低功耗并降低工作温度以提高使用寿命和系统可靠性，同时提供 2.47W 的最大功耗以实现紧凑型设计。

ZXTP56060FDBQ和ZXTP56020FDBQ在 IATF 16949 认证设施中制造，并与汽车工业行动组织的生产部件批准流程 (PPAP) 兼容。这些器件采用紧凑的 DFN2020 封装 (2mm x 2mm x 0.6mm)，3000 片批量.

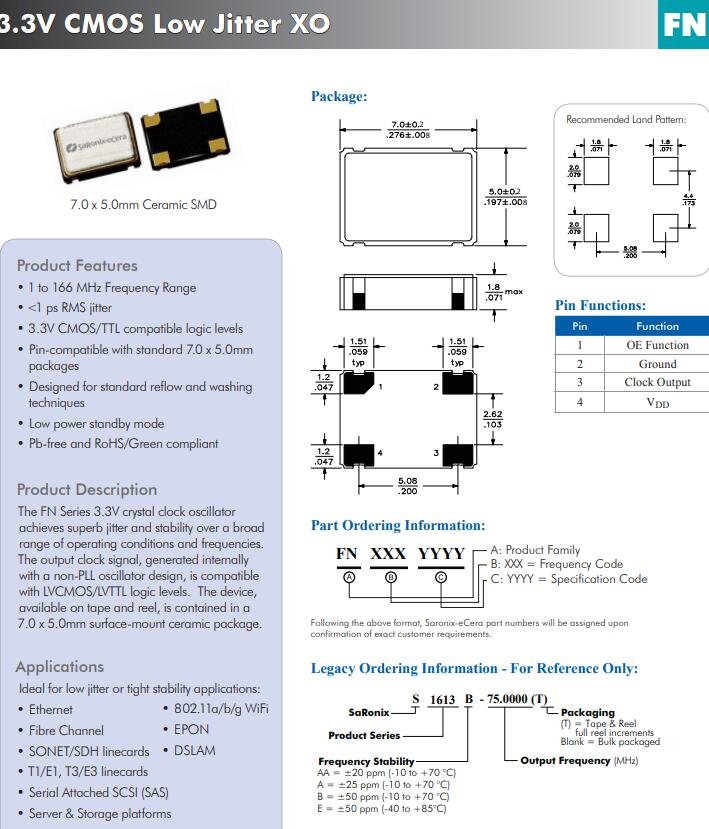

产品特性
1 ~ 166mhz频率范围
<1 ps RMS抖动
3.3V CMOS/TTL兼容逻辑电平
引脚兼容标准7.0 x 5.0mm包
用于标准回流和洗涤技术
低功耗待机模式
无铅和RoHS/绿色环保

FN1630021	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±50ppm	-20°C ~ 70°C
FN1630022	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±25ppm	-20°C ~ 70°C
FN1630023	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±50ppm	-40°C ~ 85°C
FN1630024	Diodes晶振	SaRonix-eCera™ FN	16.384MHz	±25ppm	-20°C ~ 70°C
FN1660005	Diodes晶振	SaRonix-eCera™ FN	16.6MHz	±50ppm	-20°C ~ 70°C
FN1690007	Diodes晶振	SaRonix-eCera™ FN	16.934MHz	±50ppm	-20°C ~ 70°C
FN1840018	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±50ppm	-20°C ~ 70°C
FN1840019	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±25ppm	-20°C ~ 70°C
FN1840020	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±50ppm	-40°C ~ 85°C
FN1840021	Diodes晶振	SaRonix-eCera™ FN	18.432MHz	±25ppm	-20°C ~ 70°C
FN1940015	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±50ppm	-20°C ~ 70°C
FN1940016	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±25ppm	-20°C ~ 70°C
FN1940018	Diodes晶振	SaRonix-eCera™ FN	19.44MHz	±50ppm	-40°C ~ 85°C
FN2000113	Diodes晶振	SaRonix-eCera™ FN	20MHz	±25ppm	-20°C ~ 70°C
FN2000118	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-40°C ~ 85°C
FN2000121	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-20°C ~ 70°C
FN2000123	Diodes晶振	SaRonix-eCera™ FN	20MHz	±50ppm	-20°C ~ 70°C
FN2210008	Diodes晶振	SaRonix-eCera™ FN	22.118MHz	±50ppm	-20°C ~ 70°C
FN2400045	Diodes晶振	SaRonix-eCera™ FN	24MHz	±50ppm	-40°C ~ 85°C
FN2400046	Diodes晶振	SaRonix-eCera™ FN	24MHz	±50ppm	-20°C ~ 70°C
FN2400047	Diodes晶振	SaRonix-eCera™ FN	24MHz	±25ppm	-20°C ~ 70°C
FN2450040	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±50ppm	-40°C ~ 85°C
FN2450041	Diodes晶振	SaRonix-eCera™ FN	24.576MHz	±25ppm	-20°C ~ 70°C

产品描述
FN系列3.3V晶体时钟晶振实现卓越的抖动和稳定的广泛操作条件和频率的范围。内部产生的输出时钟信号与非锁相环振荡器设计，是兼容的LVCMOS/LVTTL逻辑电平的设备,可在磁带和卷轴上，是包含在一个7.0 x 5.0mm表面贴装陶瓷封装。
应用程序
适用于低抖动或紧密稳定的应用:
以太网
光纤通道
SONET / SDH linecards
T1/E1, T3/E3线卡
SAS (Serial Attached SCSI)
服务器和存储平台
