ISM频段应用6G晶振,ABM13W-38.400MHz-8-D2X,Abracon超微型晶振
频率：38.400MHz
尺寸：1.2x1.0x0.33mm
ISM频段应用6G晶振,ABM13W-38.400MHz-8-D2X,Abracon超微型晶振，美国Abracon艾博康晶振，型号：ABM13W系列，编码为：ABM13W-38.400MHz-8-D2X，频率为：38.400MHz，小体积晶振尺寸：1.2x1.0x0.33mm封装，四脚贴片晶振，石英晶振，石英晶体谐振器，SMD晶体，无源晶振，石英晶体，无铅环保晶振。世界上最小的At-Cut MHz水晶（1.20x1.00x0.33毫米包装），外形小巧，非常适合高度限制设计，可提供±10ppm的设定公差，在扩展的温度范围内同时优化低电镀负载和ESR，使用低能耗SoC增强了启动时间和节能性能，欧美进口晶振，非常适合空间受限的物联网、可穿戴设备，无线应用，无线模块，物联网（IoT），蓝牙/蓝牙低能耗（BLE），机器对机器（M2M）连接，超低功耗MCU、SoC、收发器，近场通信，ISM频段应用。
ISM频段应用6G晶振,ABM13W-38.400MHz-8-D2X,Abracon超微型晶振 参数表
Parameters
Min.
Typ.
Max.
Units
Note
Frequency Range
32.0000
80.0000
MHz
Standard Available Frequencies
32.0000, 37.4000, 38.4000, 40.0000,45.0000, 48.0000,52.0000, 60.0000,76.8000, 80.0000
MHz
Contact Abracon for
Nonstandard Frequencies
Operation Mode
Fundamental
Operating Temperature Range
-40
+85
°C
See Options
Storage Temperature
-40
+125
°C
Frequency Tolerance @ +25°C
-10
+10
ppm
See options
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
-15
+15
ppm
See options
Equivalent series resistance (R1)
(over -40°C to +125°C)
at 5pF plating load*
< 45
100
Ω
32.0000-32.9999MHz
< 35
80
33.0000-36.9999MHz
< 25
50
37.0000-80.0000MHz
Shunt capacitance (C0)
1.0
pF
Load capacitance (CL)
5.0
pF
See options
Drive Level
10
100
μW
Aging (1 year)
-2
+2
ppm
@25°C± 3°C
Insulation Resistance
500
MΩ
@100 Vdc ± 15V

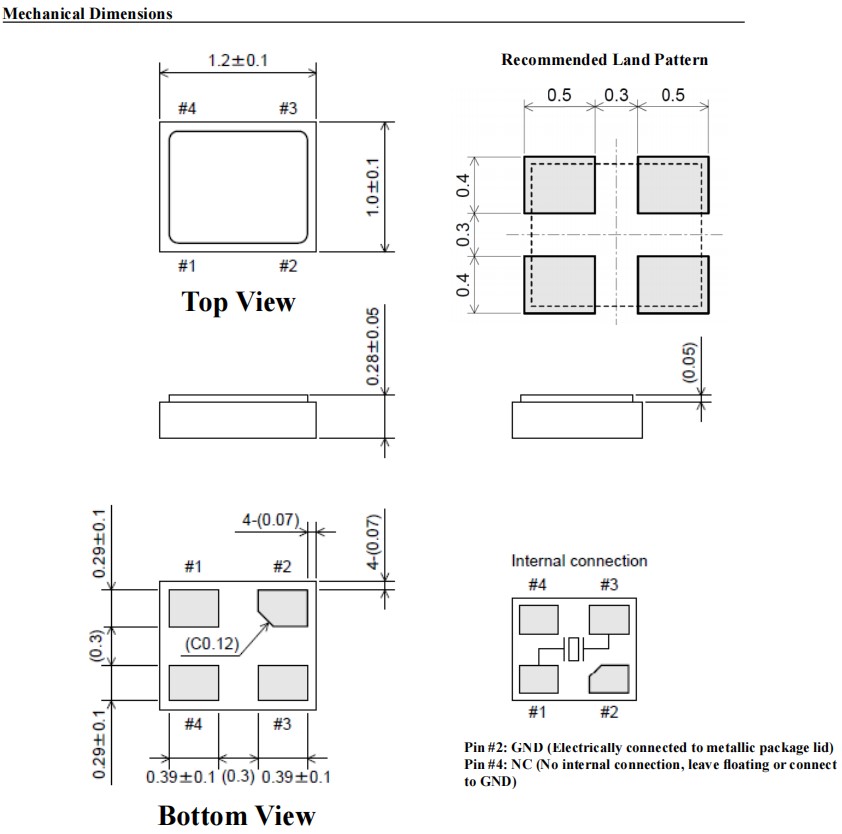

ISM频段应用6G晶振,ABM13W-38.400MHz-8-D2X,Abracon超微型晶振 尺寸图
ISM频段应用6G晶振,ABM13W-38.400MHz-8-D2X,Abracon超微型晶振
产品特点：
世界上最小的At-Cut MHz水晶（1.20x1.00x0.33毫米包装）石英晶振
外形小巧，非常适合高度限制设计
可提供±10ppm的设定公差
在扩展的温度范围内同时优化低电镀负载和ESR
使用低能耗SoC增强了启动时间和节能性能
非常适合空间受限的物联网、可穿戴设备和无线应用
| 原厂编码 | 晶振厂家 | 型号 | 频率 | 包装/封装 |
| ABM10-167-12.000MHZ-T3 | Abracon晶振 | ABM10 | 12MHz | 4-SMD, No Lead |
| ABM10-166-12.000MHZ-T3 | Abracon晶振 | ABM10 | 12MHz | 4-SMD, No Lead |
| ABM11-140-26.000MHZ-T3 | Abracon晶振 | ABM11 | 26MHz | 4-SMD, No Lead |
| ABM11-141-26.000MHZ-T3 | Abracon晶振 | ABM11 | 26MHz | 4-SMD, No Lead |
| ABM11-143-27.120MHZ-T3 | Abracon晶振 | ABM11 | 27.12MHz | 4-SMD, No Lead |
| ABM10AIG-24.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 24MHz | 4-SMD, No Lead |
| ABM10AIG-25.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 25MHz | 4-SMD, No Lead |
| ABM10AIG-27.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 27MHz | 4-SMD, No Lead |
| ABM10AIG-32.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 32MHz | 4-SMD, No Lead |
| ABM10-16.000MHZ-E20-T | Abracon晶振 | ABM10 | 16MHz | 4-SMD, No Lead |
| ABM10-24.000MHZ-E20-T | Abracon晶振 | ABM10 | 24MHz | 4-SMD, No Lead |
| ABM11AIG-24.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | 24MHz | 4-SMD, No Lead |
| ABM11AIG-40.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | 40MHz | 4-SMD, No Lead |
| ABM12-115-26.000MHZ-T3 | Abracon晶振 | ABM12 | 26MHz | 4-SMD, No Lead |
| ABM12-116-26.000MHZ-T3 | Abracon晶振 | ABM12 | 26MHz | 4-SMD, No Lead |
| ABM12-117-27.120MHZ-T3 | Abracon晶振 | ABM12 | 27.12MHz | 4-SMD, No Lead |
| ABM12-118-27.120MHZ-T3 | Abracon晶振 | ABM12 | 27.12MHz | 4-SMD, No Lead |
| ABM11-16.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 16MHz | 4-SMD, No Lead |
| ABM11-16.000MHZ-9-B1U-T | Abracon晶振 | ABM11 | 16MHz | 4-SMD, No Lead |
| ABM11-16.000MHZ-B7G-T | Abracon晶振 | ABM11 | 16MHz | 4-SMD, No Lead |
| ABM11-142-27.120MHZ-T3 | Abracon晶振 | ABM11 | 27.12MHz | 4-SMD, No Lead |
| ABM10-24.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 24MHz | 4-SMD, No Lead |
| ABM10-32.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 32MHz | 4-SMD, No Lead |
| ABM10-30.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 30MHz | 4-SMD, No Lead |
| ABM10-25.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 25MHz | 4-SMD, No Lead |
| ABM10-18.432MHZ-D30-T3 | Abracon晶振 | ABM10 | 18.432MHz | 4-SMD, No Lead |
| ABM10-19.200MHZ-D30-T3 | Abracon晶振 | ABM10 | 19.2MHz | 4-SMD, No Lead |
| ABM10-22.1184MHZ-D30-T3 | Abracon晶振 | ABM10 | 22.1184MHz | 4-SMD, No Lead |
| ABM10-26.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 26MHz | 4-SMD, No Lead |
| ABM11-20.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 20MHz | 4-SMD, No Lead |
| ABM10-16.3676MHZ-D30-T3 | Abracon晶振 | ABM10 | 16.3676MHz | 4-SMD, No Lead |
| ABM10-16.384MHZ-D30-T3 | Abracon晶振 | ABM10 | 16.384MHz | 4-SMD, No Lead |
| ABM10-20.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 20MHz | 4-SMD, No Lead |
| ABM10-24.576MHZ-D30-T3 | Abracon晶振 | ABM10 | 24.576MHz | 4-SMD, No Lead |
| ABM10AIG-20.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 20MHz | 4-SMD, No Lead |
| ABM10AIG-26.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 26MHz | 4-SMD, No Lead |
| ABM10AIG-12.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 12MHz | 4-SMD, No Lead |
| ABM10AIG-24.576MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 24.576MHz | 4-SMD, No Lead |
| ABM10AIG-16.000MHZ-4Z-T3 | Abracon晶振 | ABM10AIG | 16MHz | 4-SMD, No Lead |
| ABM11-32.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 32MHz | 4-SMD, No Lead |
| ABM11-40.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 40MHz | 4-SMD, No Lead |
| ABM11-25.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 25MHz | 4-SMD, No Lead |
| ABM11-30.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 30MHz | 4-SMD, No Lead |
| ABM11-28.63636MHZ-D2X-T3 | Abracon晶振 | ABM11 | 28.63636MHz | 4-SMD, No Lead |
